Custom Game Board
Game board is the core part of tabletop game. At FUNWAY, we can produce different types: folded game board with precise hinge alignment, also rigid game board with multi-layer lamination.
We control the details that affect durability — grain direction, panel registration, flatness tolerance, surface protection. Our factory has rich experience in game board production, can provide stable quality and competitive price.
Board Size | Custom up to 600×900mm; common: 400×400mm, 500×500mm, 508×508mm (20×20in) |
|---|---|
Thickness | 1.5mm, 2mm, 2.5mm, 3mm (custom available) |
Material | Grey / white/ black/ Blue core board + art paper, chipboard, or rigid board. customization avaliable. |
Folding Type | Bi-fold, Tri-fold, Quad-fold, Z-fold, Gate-fold, etc. |
Surface Finish | Gloss varnish, matte varnish, glossy lamination, matte lamination, soft-touch |
MOQ | 1 for prototype or sample; 500+ for bulk |
Turnaround | Prototype: 5-7 days; Bulk: 15-25 days |
What Your Can Customize for Game Board

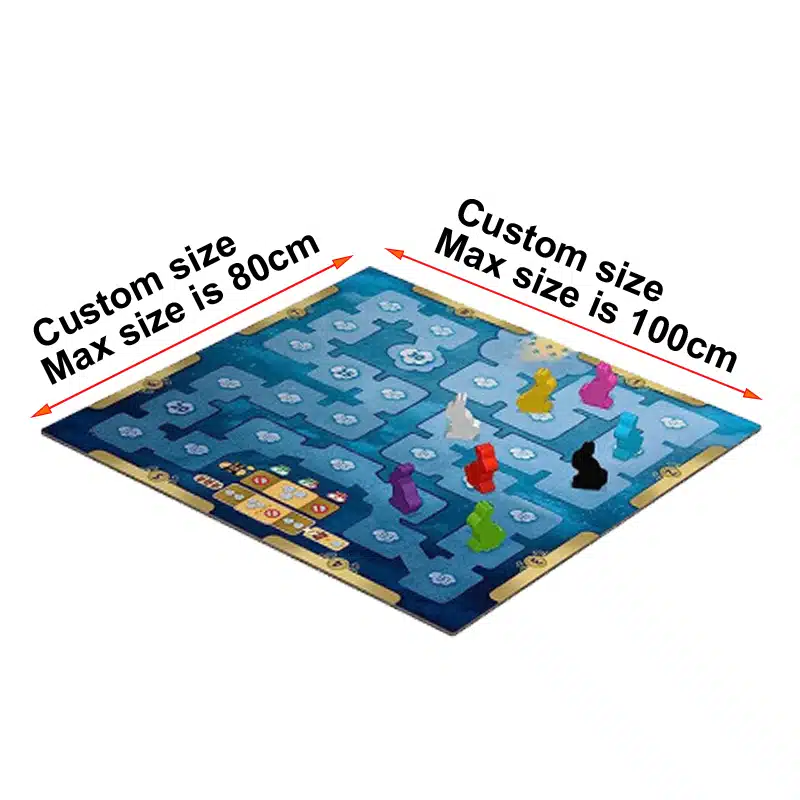

Custom Game Board Sizes & Dimensions
Game board size is not just a visual choice. It affects fold structure, panel layout, die-cut planning, box fit, and carton efficiency from the beginning. In actual production, we usually do not start from what size looks best in artwork. We start from how large the usable play area needs to be, how the board will fold, and what box range the project is expected to fit into.
We produce both standard board sizes and fully custom dimensions, from compact travel formats up to large boards around 30″ × 30″. If a standard size does not fit the gameplay, a custom size can absolutely be made. But once the board gets larger, the job usually stops being just a print-size question. Board thickness, fold count, wrapped edge control, mounting stability, and shipping volume all start moving with it.
We usually work this in a fixed order: play area first, fold pattern next, outer size last. If a project starts from the outside dimensions instead, the board often has to be forced back into shape later. That is when fold lines land in awkward places, panels stop feeling balanced, or the finished board ends up taking a larger box than the game really needed.
A lot of board game problems actually start at the fold stage. The artwork may look fine as a flat layout, but once the closed size is fixed, the fold options usually narrow very quickly. Once the board size is fixed first, the fold options usually become much narrower. That is when panels start coming out uneven, the center section gets too crowded, or the closed board still ends up taking more box space than it should. On real jobs, we normally sort this part out together with the board size and packed size, because once the board is mounted, wrapped, and folded, those problems are much harder to hide.

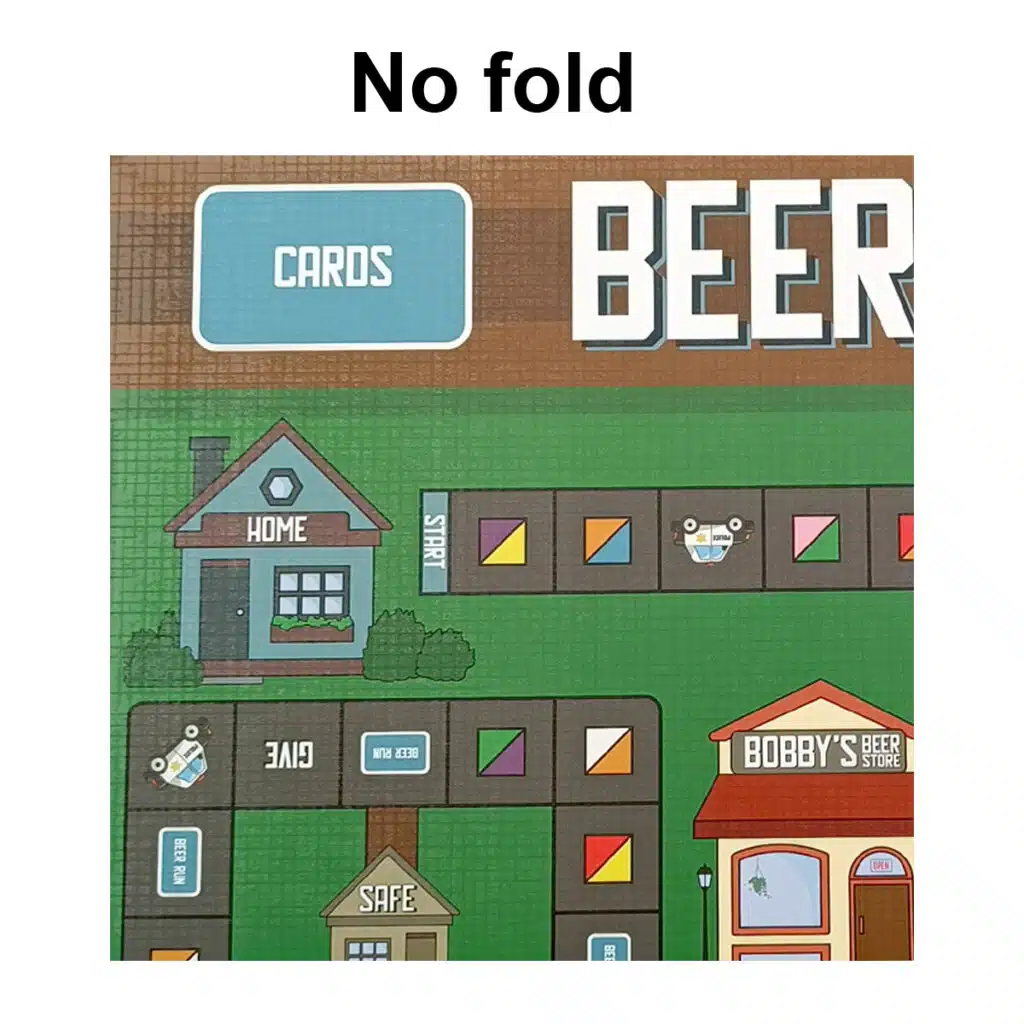

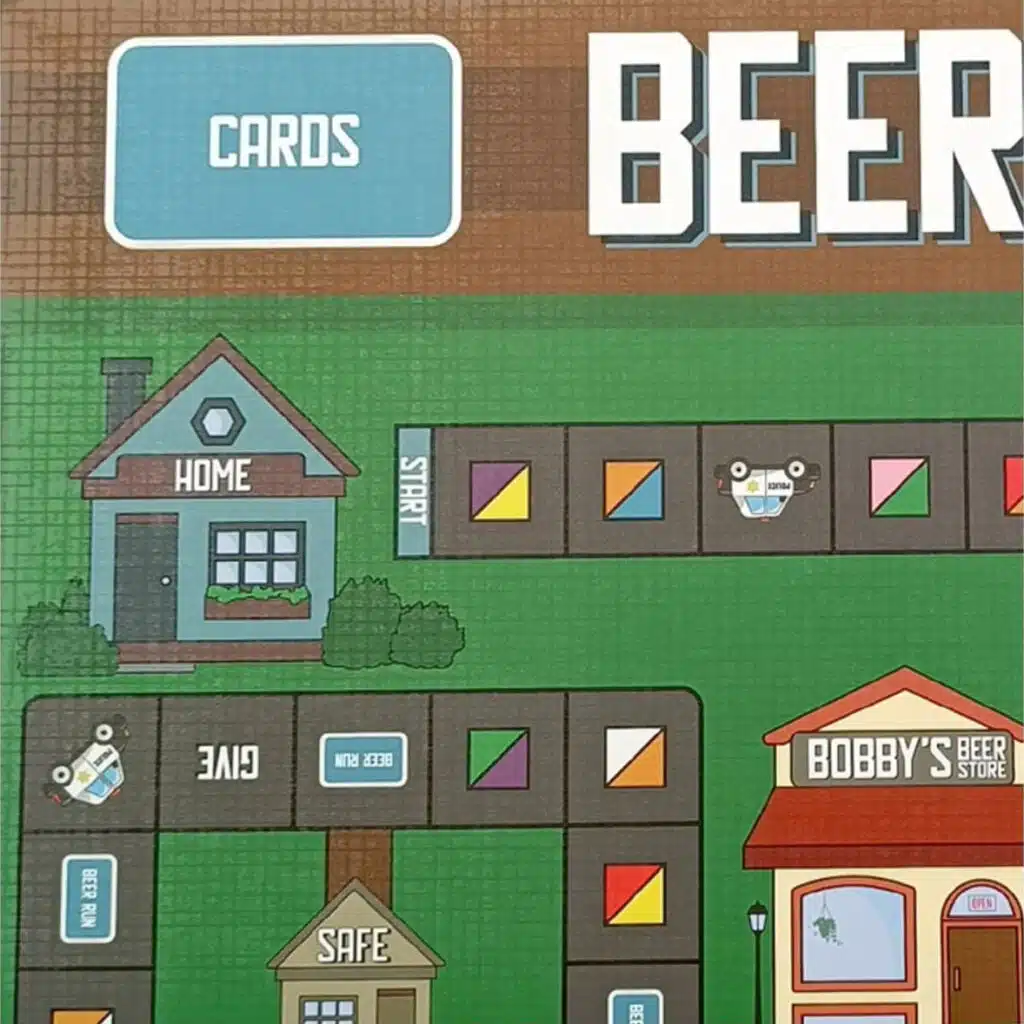

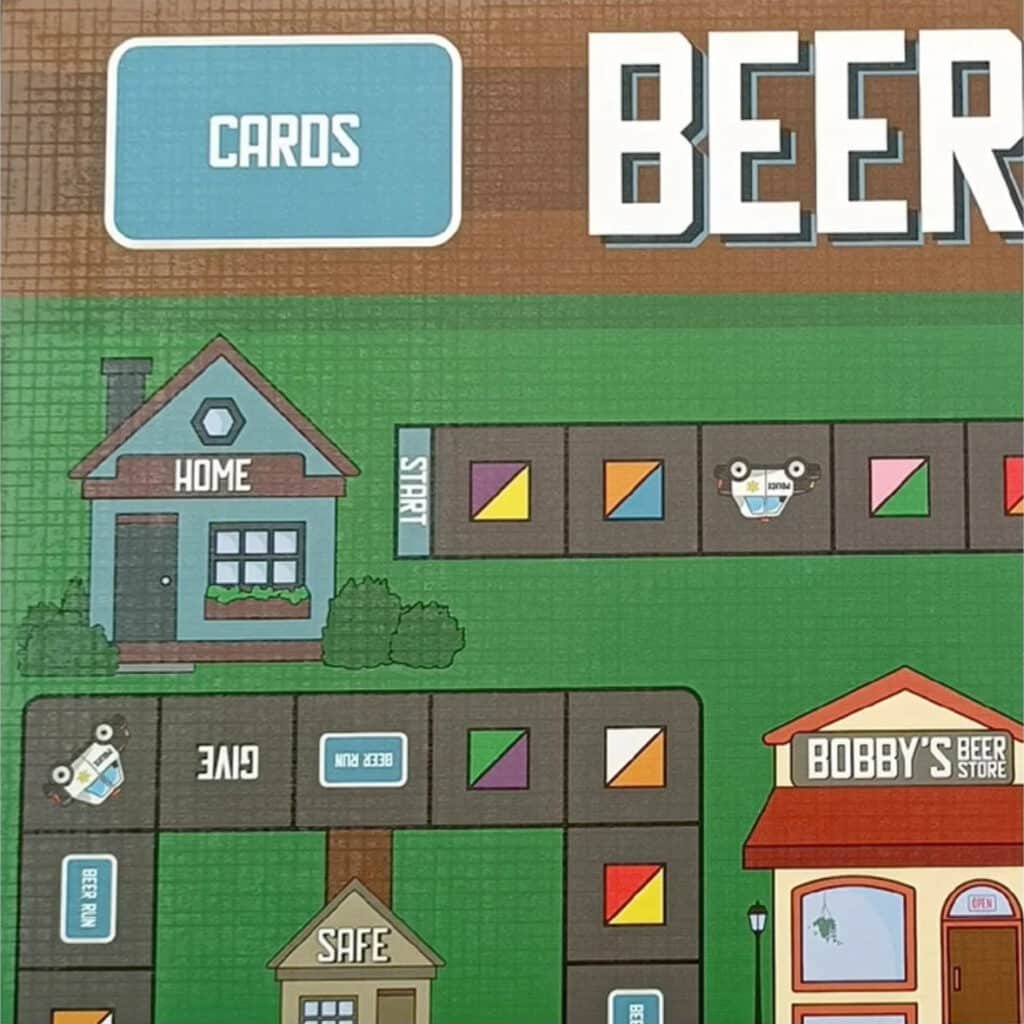

No-fold
A flat board with no hinge. We usually use this when the board is small enough to pack as one piece, or when a fold line through the play area would be more trouble than benefit.

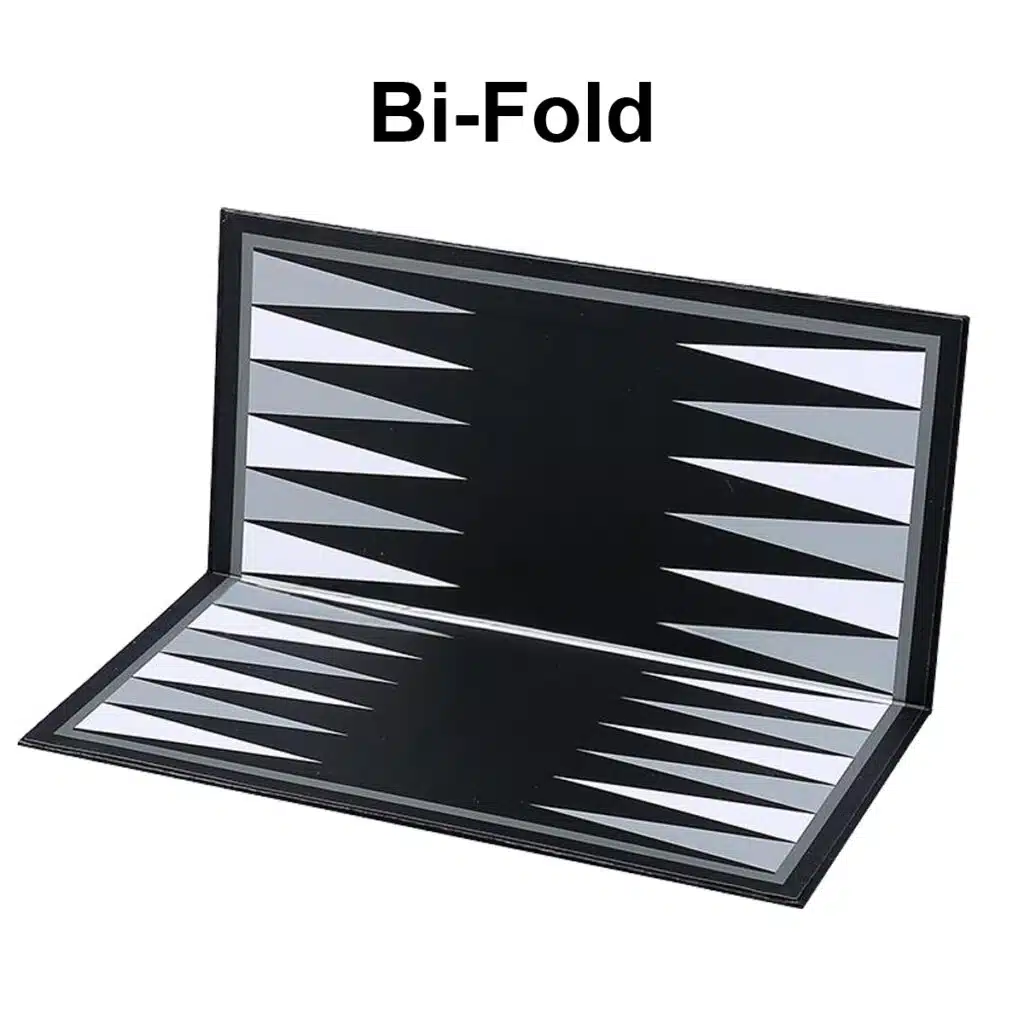

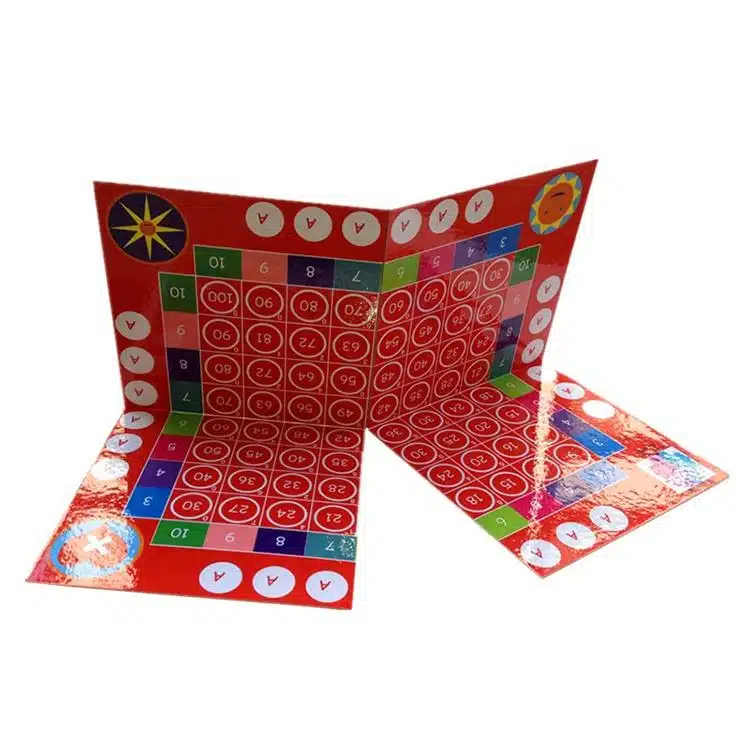

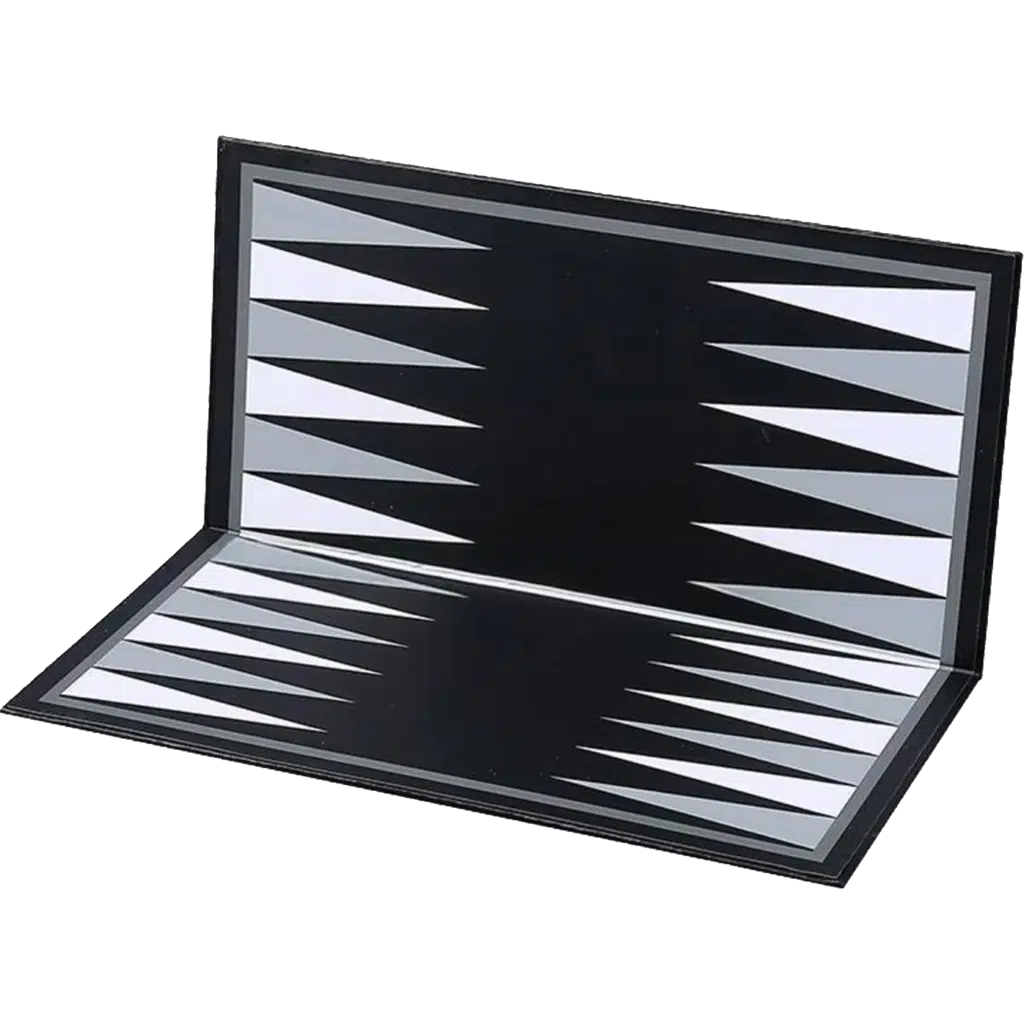

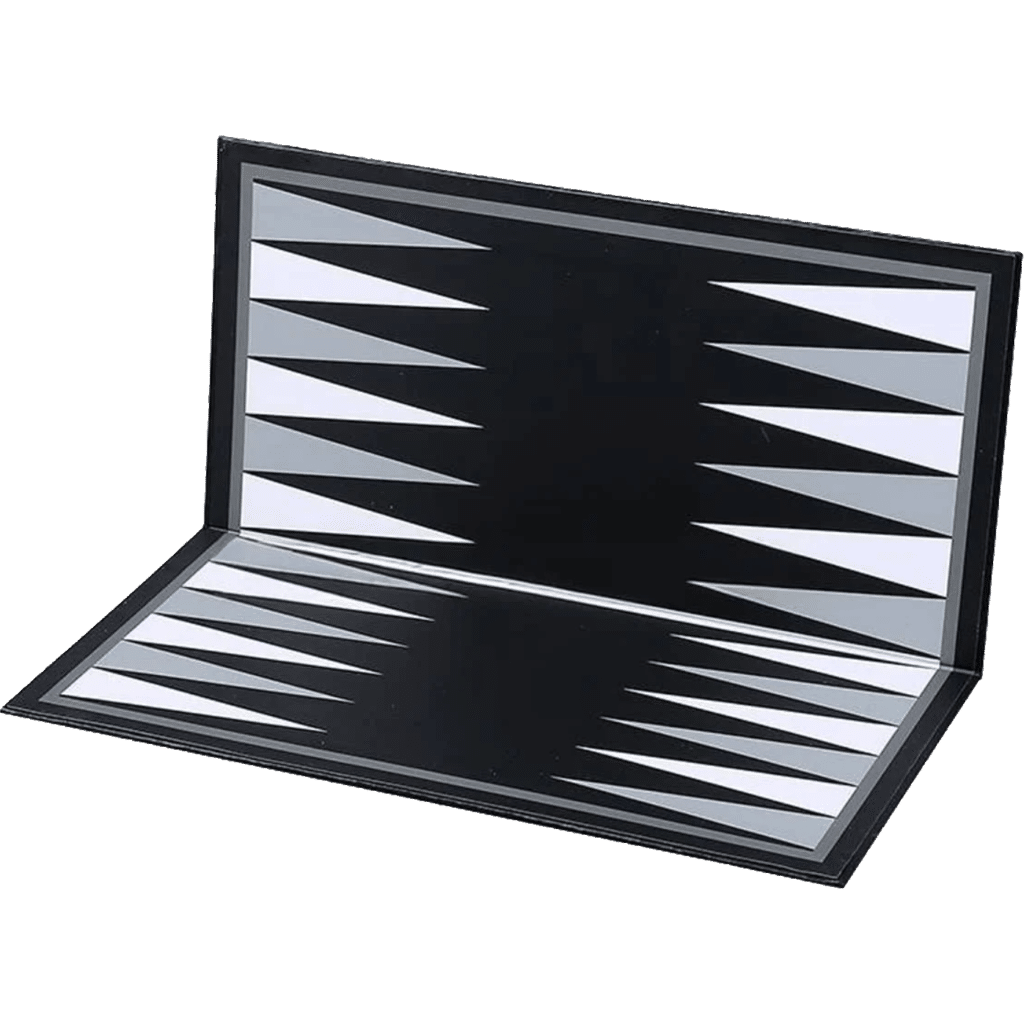

Bi-fold
One fold through the middle. This is the most common board structure because it is simple, stable, and easy to pack without making the board feel over-engineered.

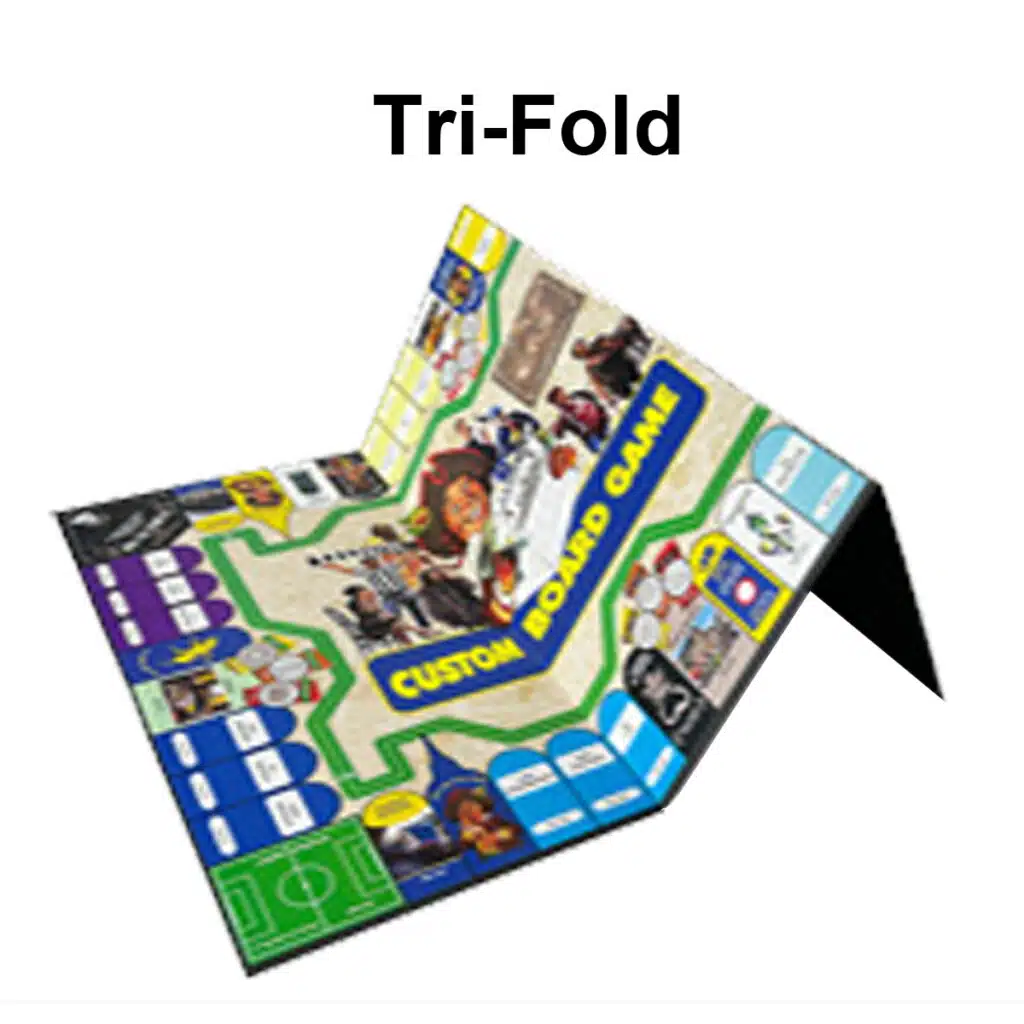

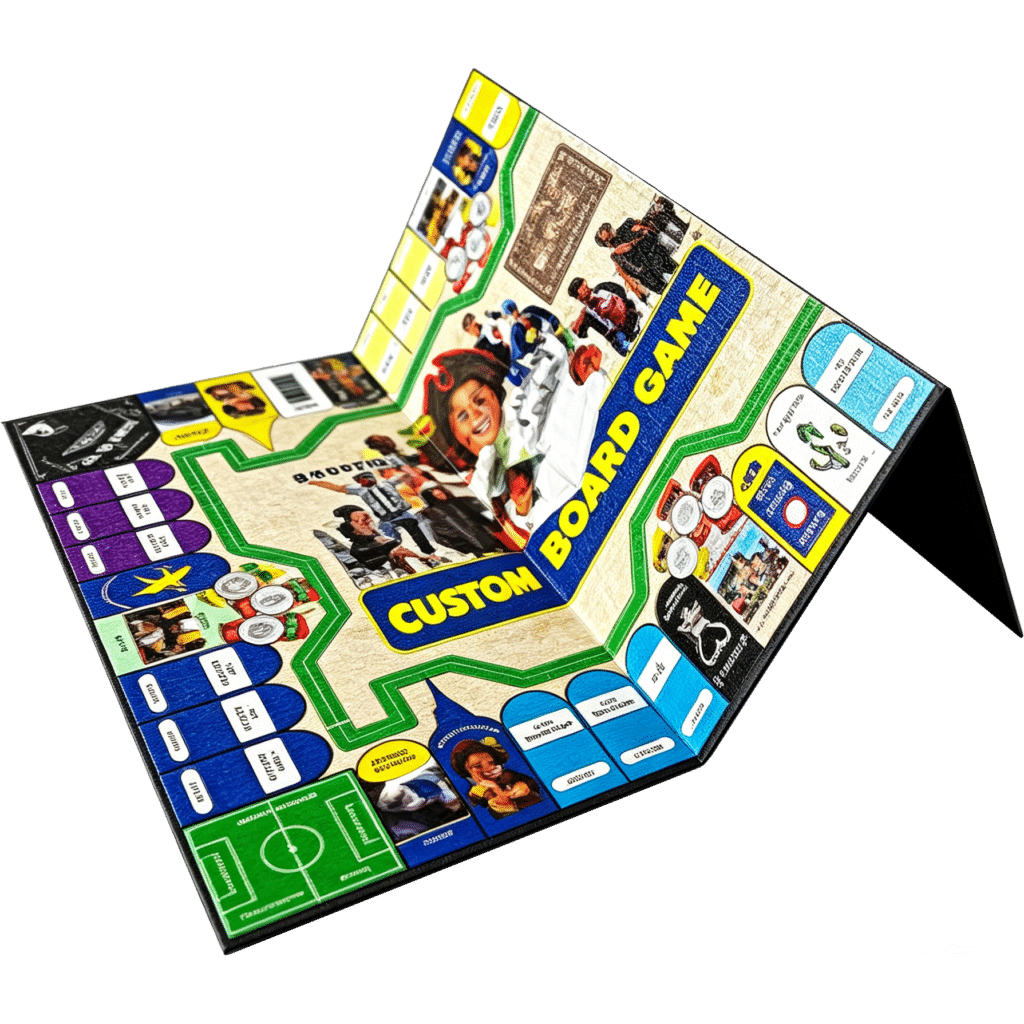

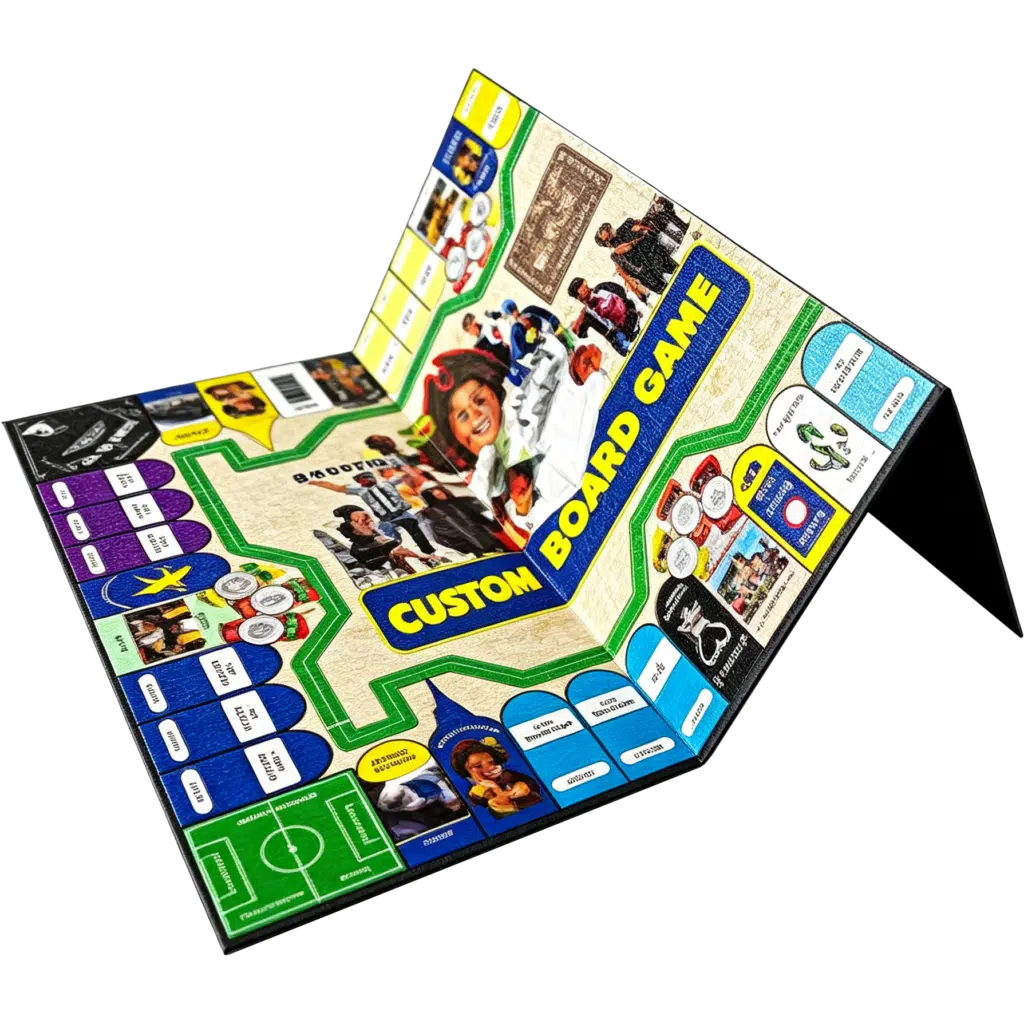

Tri-fold
Three panels with two folds. This is usually used when a bi-fold still packs too large, but the panel widths need to be planned carefully or one section starts feeling narrow and awkward.

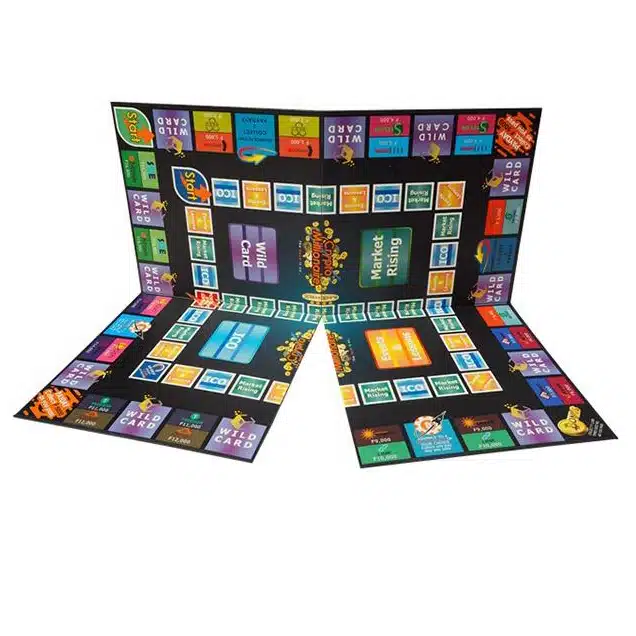

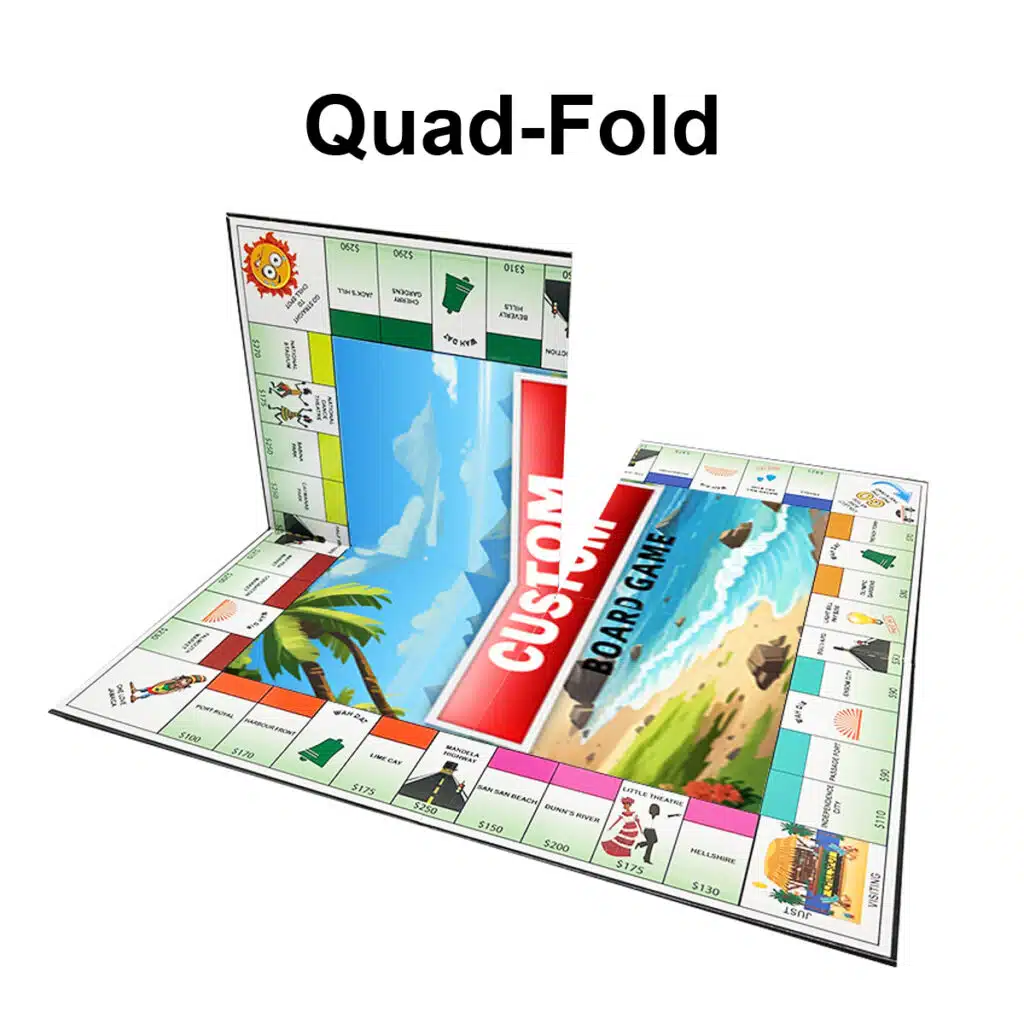

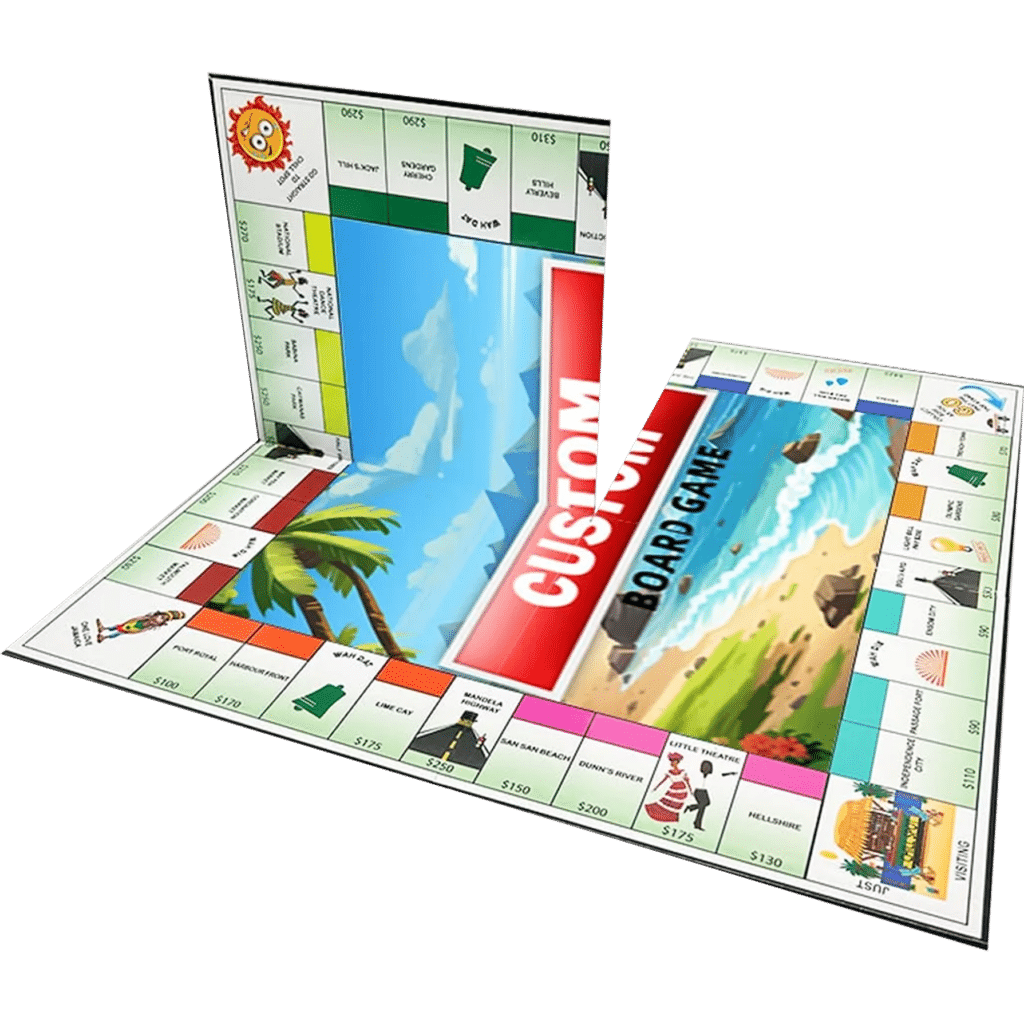

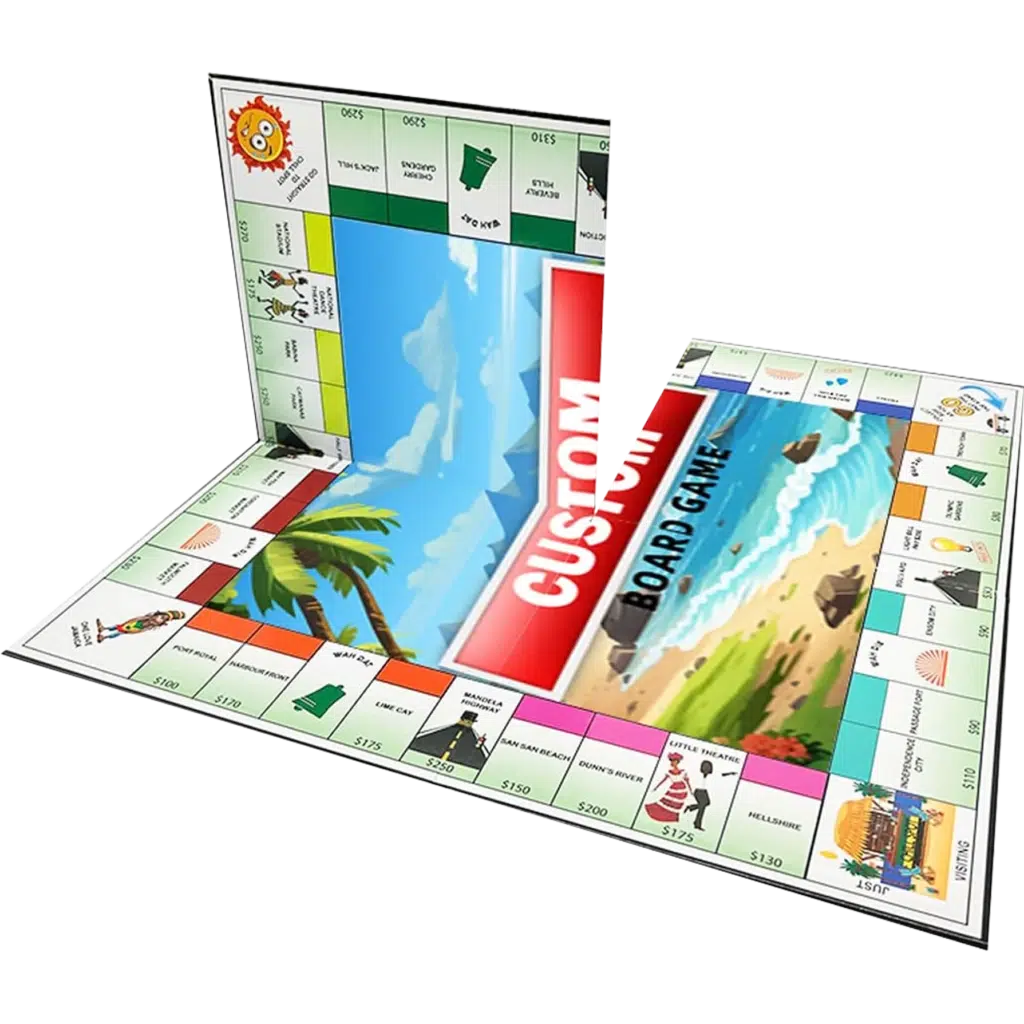

Quad-fold
A four-panel structure used for larger square boards. It packs down efficiently, but panel alignment and hinge build matter more here because problems around the center show up quickly once the board is opened.

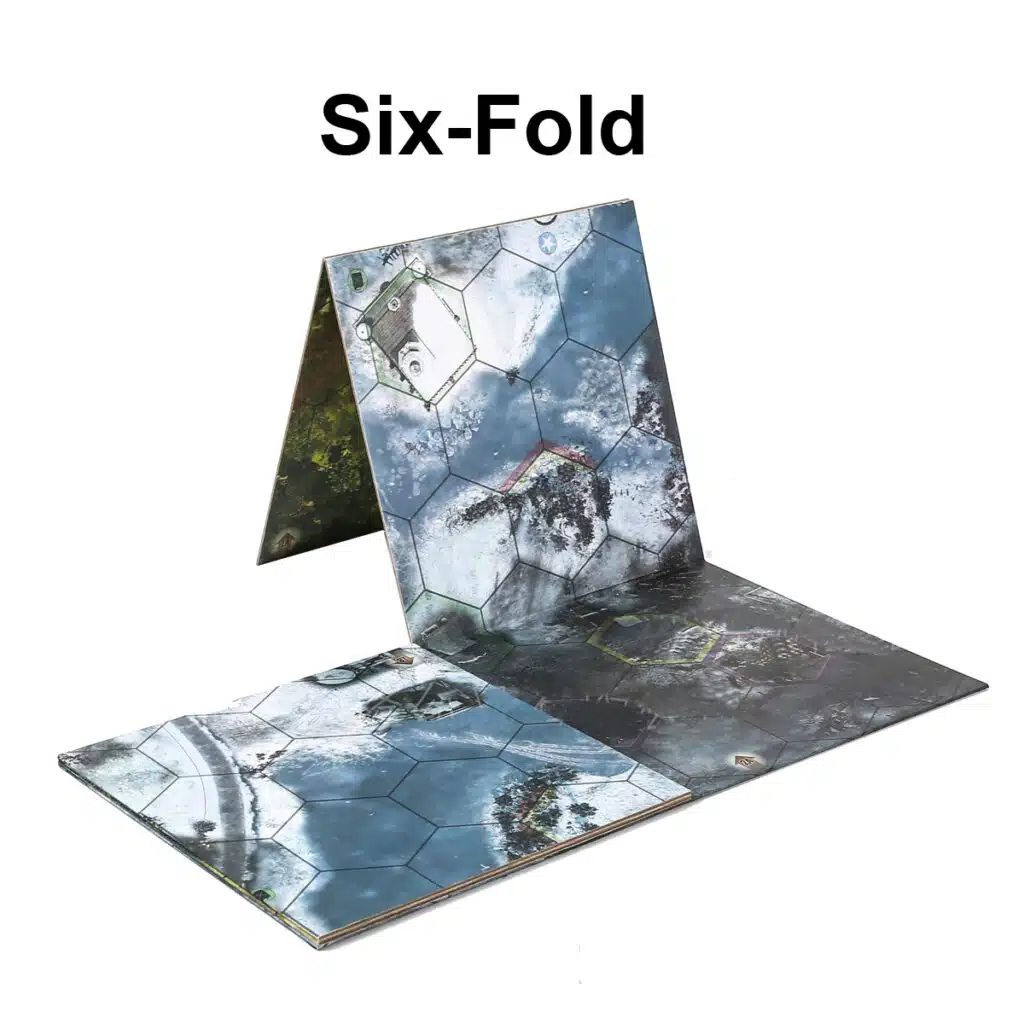

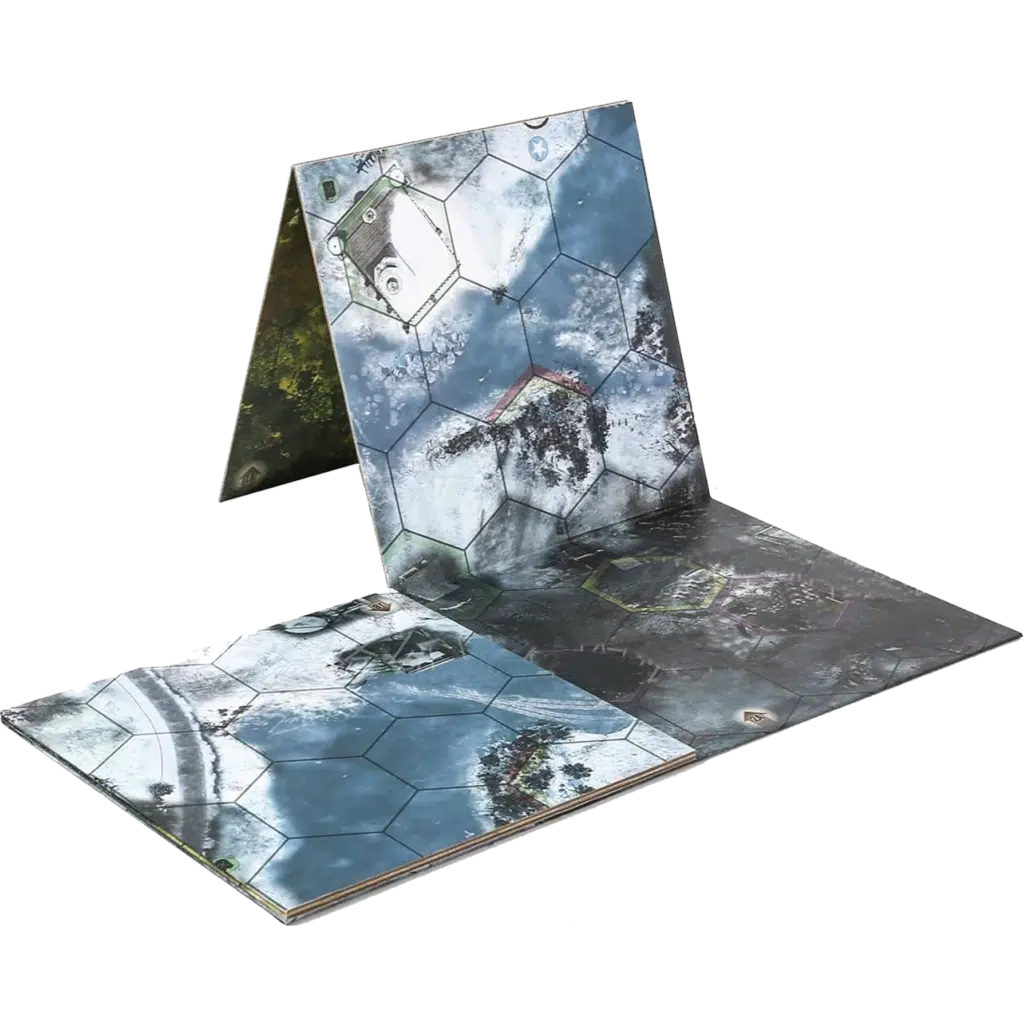

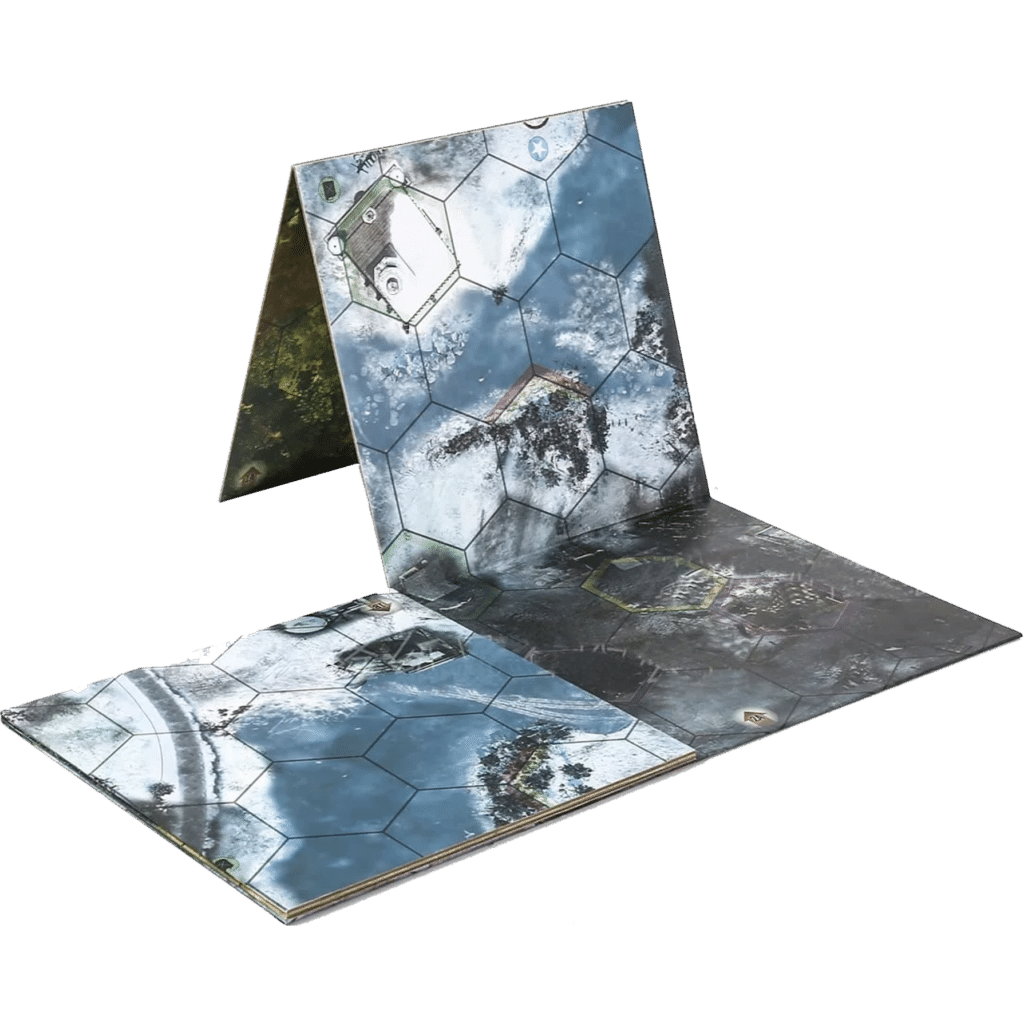

Six-fold
Six panels folded into a more compact packed size. This is useful for larger boards that need to fit a smaller box, but more folds also mean more chances for lift, stress, and uneven opening if the structure is not handled well.

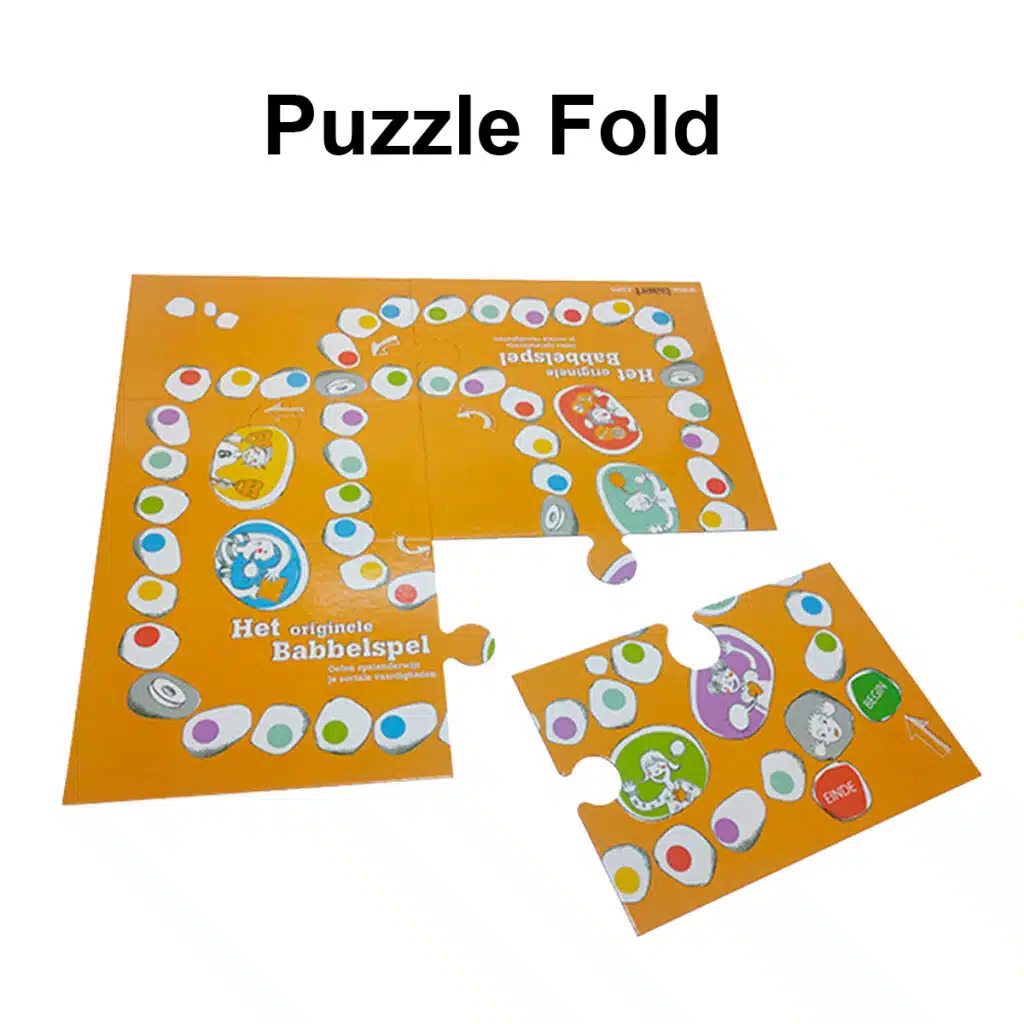

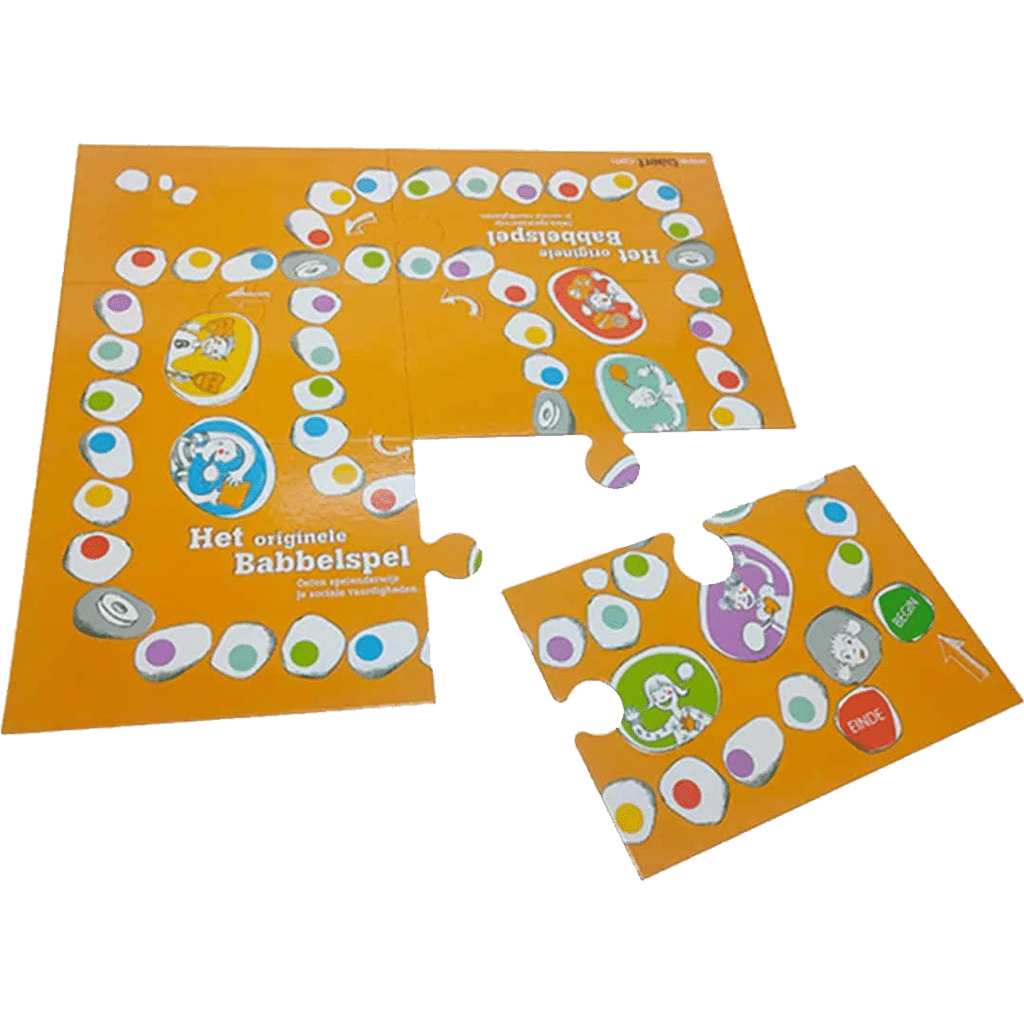

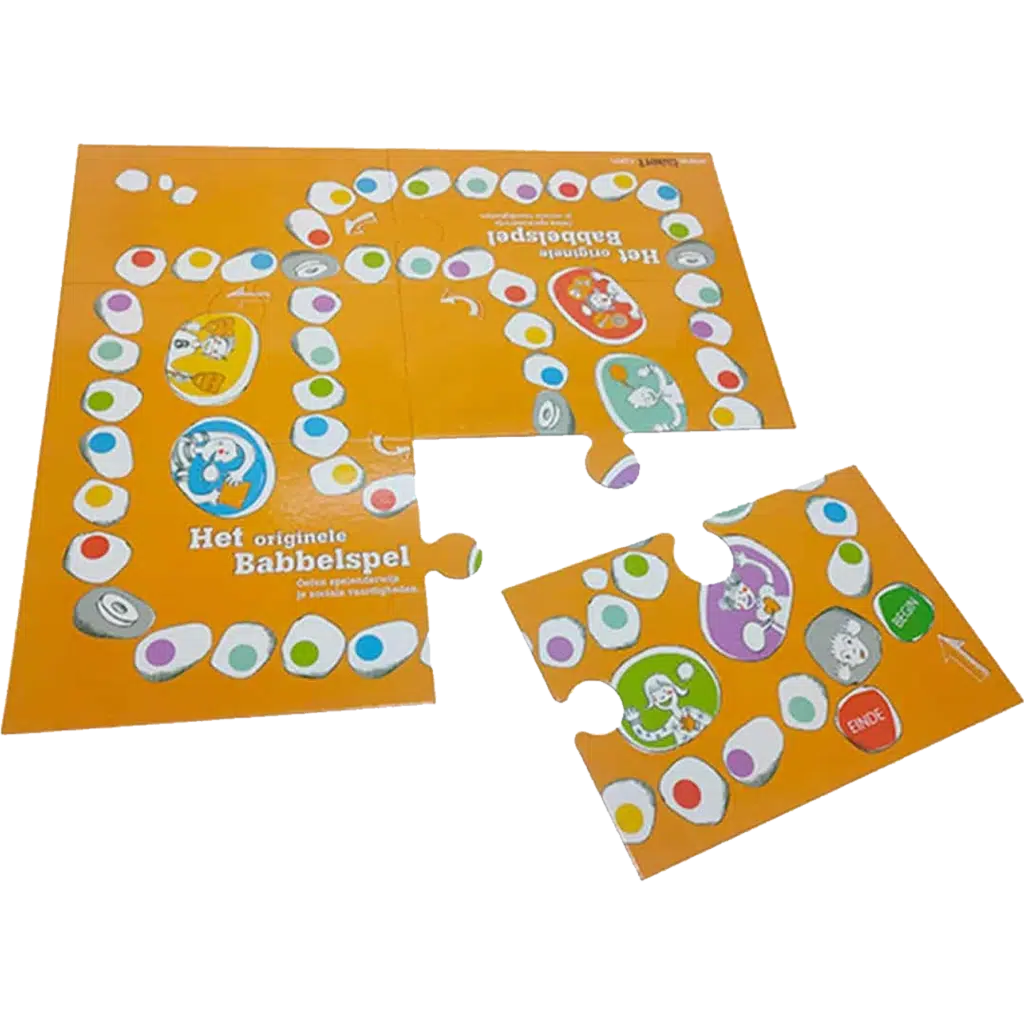

Puzzle-fold
This is not a hinge-fold board. The board is split into interlocking sections that assemble on the table. It is often a better answer for unusual shapes or larger layouts that do not fold cleanly on normal hinges.

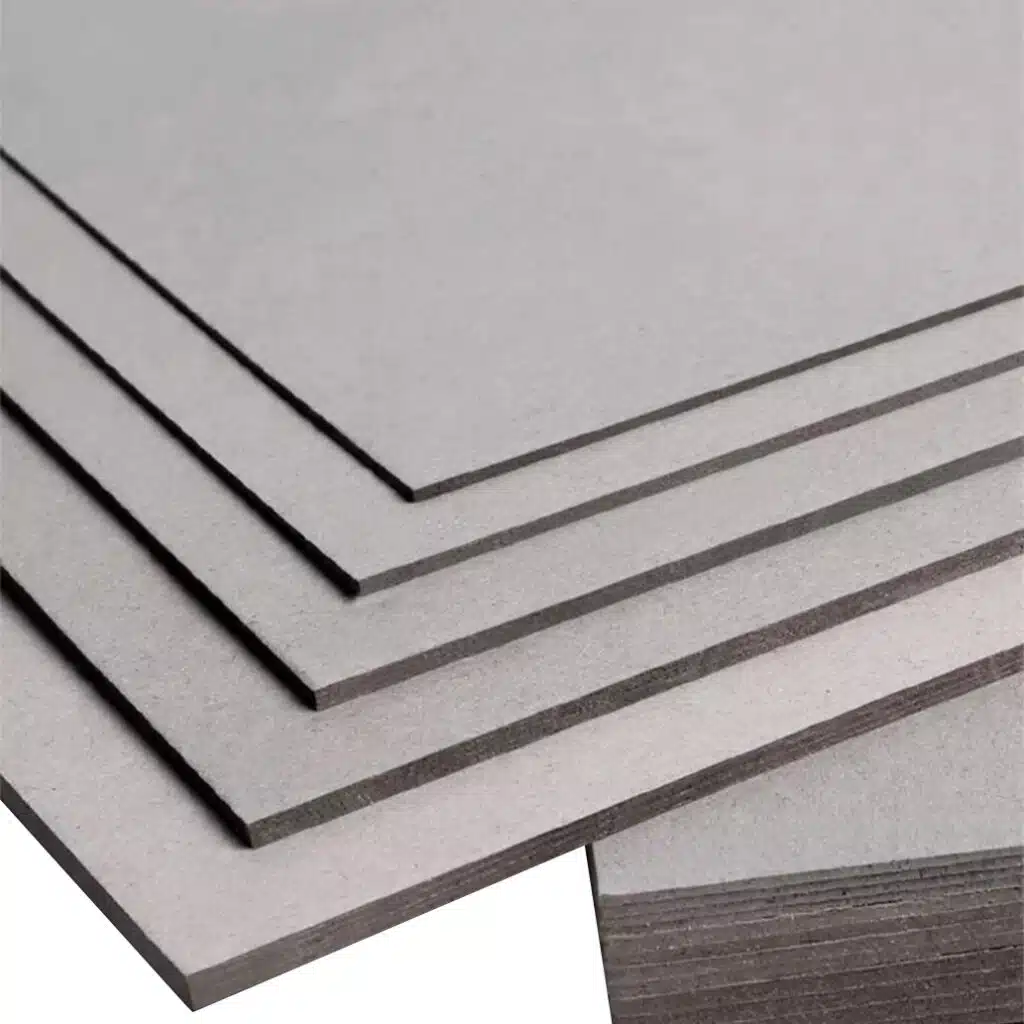

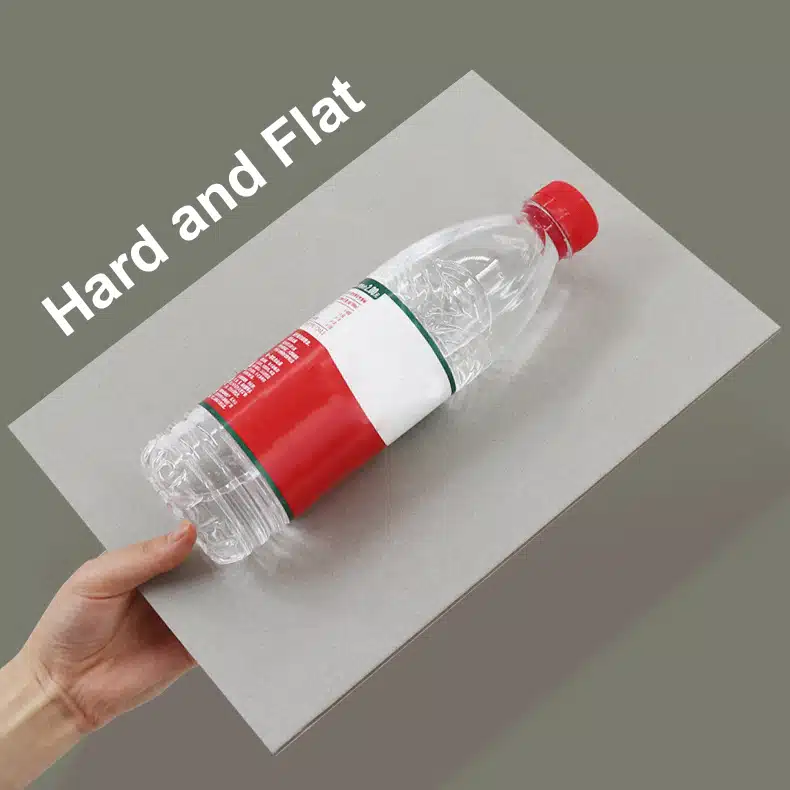

High-Density Core Materials
The board core is where flatness and rigidity are decided. For most game boards, we use high-density greyboard as the base material. That is the part carrying the structure. If the core is too soft or too light, the board may still look fine at first, but corners lift more easily, folds feel weaker, and larger panels are harder to keep flat after mounting. We wrap the core with printed litho paper to build the finished board. The point is not to make it sound premium. The point is to make sure the board opens cleanly, stays stable on the table, and does not start feeling weak after repeated use.

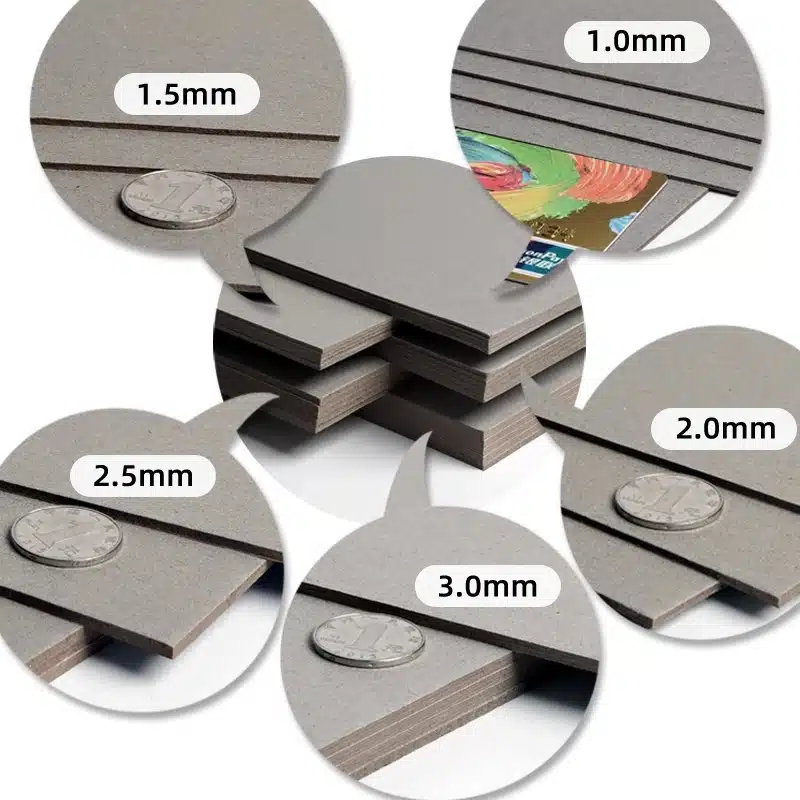

Thickness Options
Board thickness changes more than hand feel. It affects stiffness, fold behavior, wrapped edge build, packed weight, and how the board sits once opened. Thicker is not always better. The right range depends on board size, fold count, box target, and how much weight the project can reasonably carry.
2.5mm – 3mm:
Usually used when the board is larger or the project wants a heavier, more solid feel on the table. It does hold the board better, but the set also gets heavier very quickly.
1.5mm – 2mm:
More common on lighter games or projects that need to keep the packed set easier to handle. This range is easier on weight and cost, but it is not a good match for every board size or fold setup.
Custom Game Board Printing
For game boards, printing is not only about making the artwork look good on press. What usually matters later is whether the color stays even across the full board, whether panel alignment still holds after mounting and folding, and whether the surface can take normal handling without marking too easily.

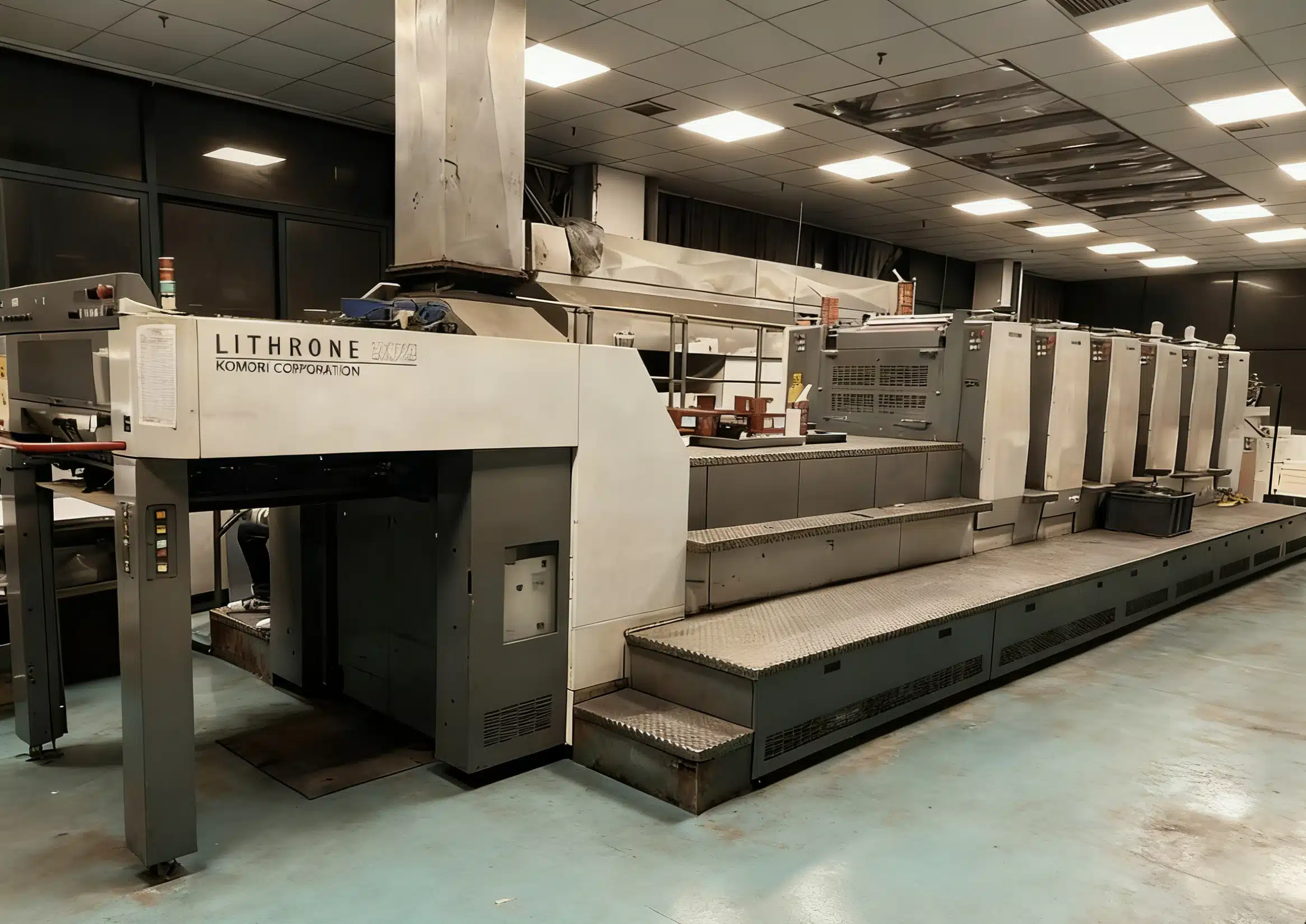

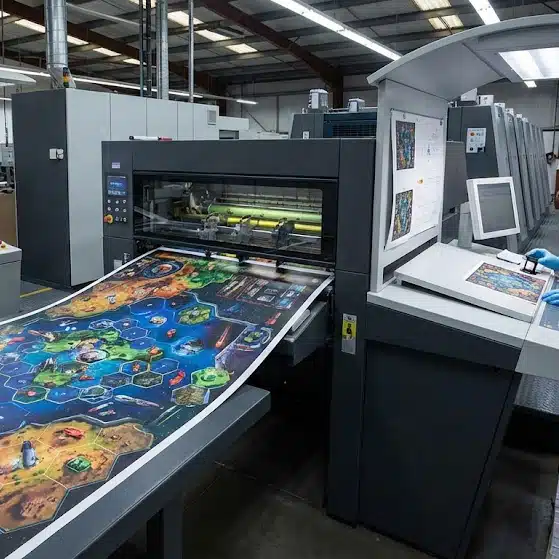

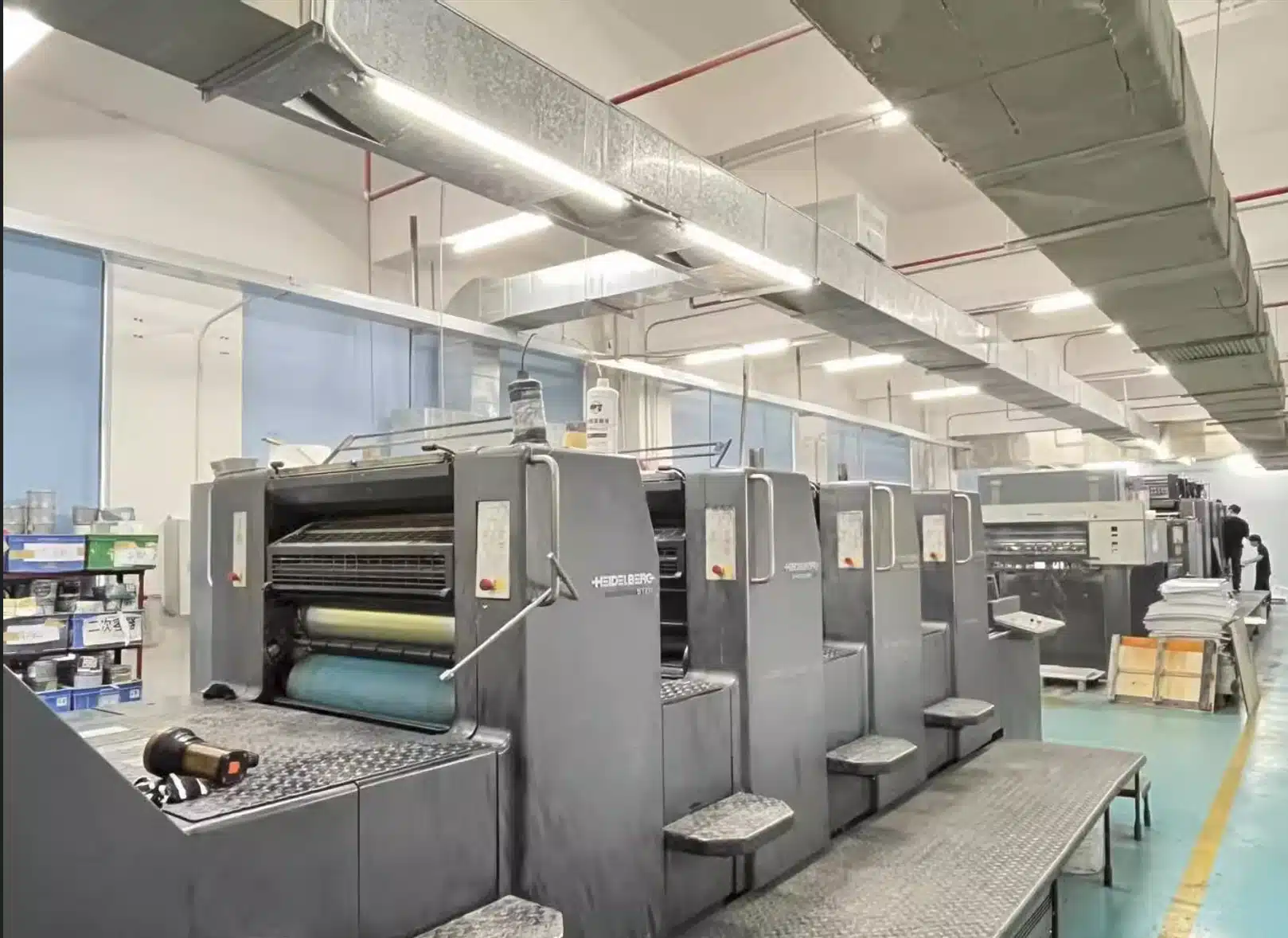

Offset Printing for Large-Format Boards
All game boards are produced using high-resolution offset printing, optimized for large sheet sizes and complex folded board layouts. We produce game boards with offset printing because it is easier to keep large sheets and folded board layouts under control that way, especially when the board has multiple panels or printing on both sides.
We standardize color before each run, because color shift is one of the first problems people notice on a large board. If that part is not controlled early, the difference usually shows first at panel joins or around fold areas.

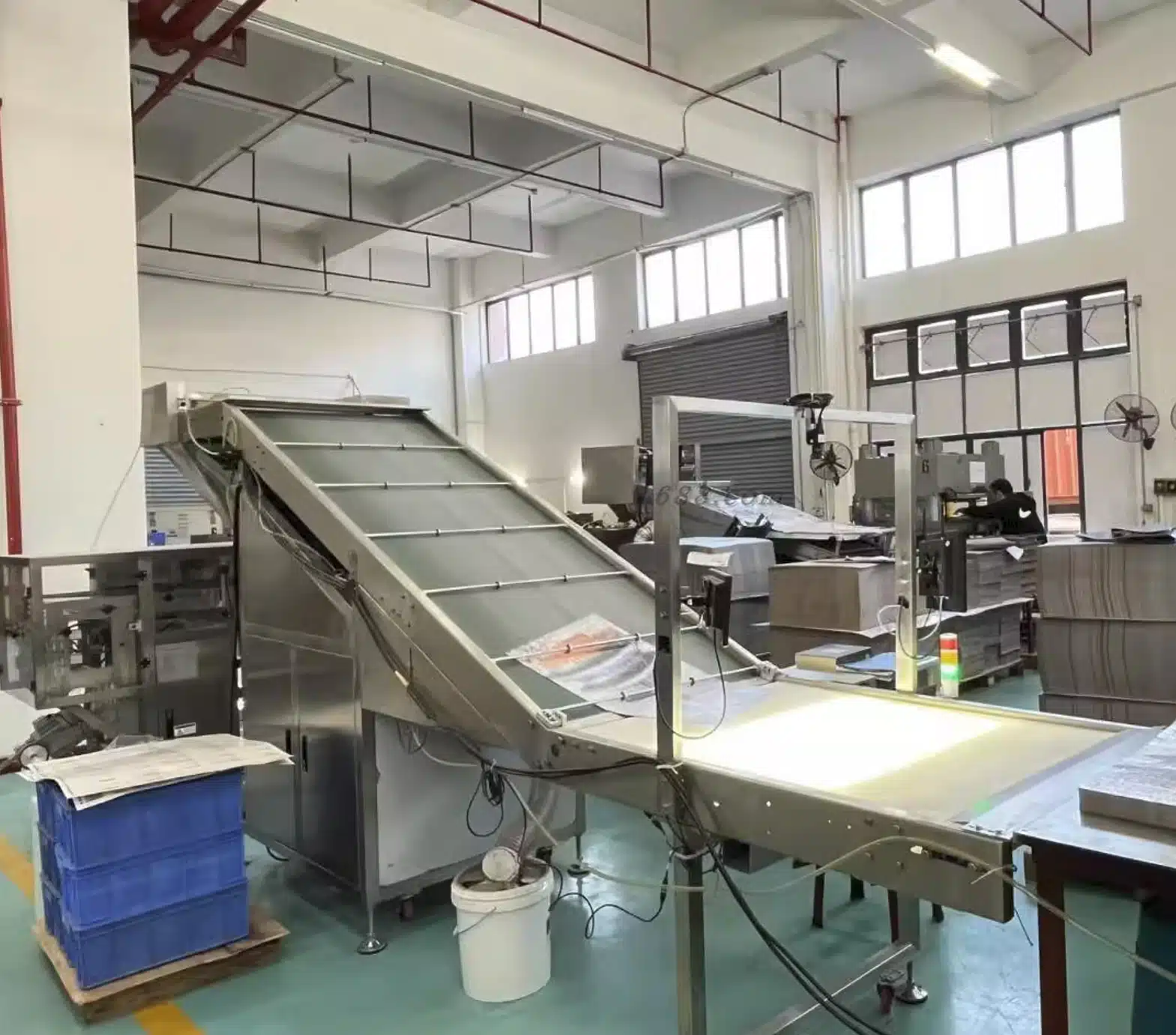

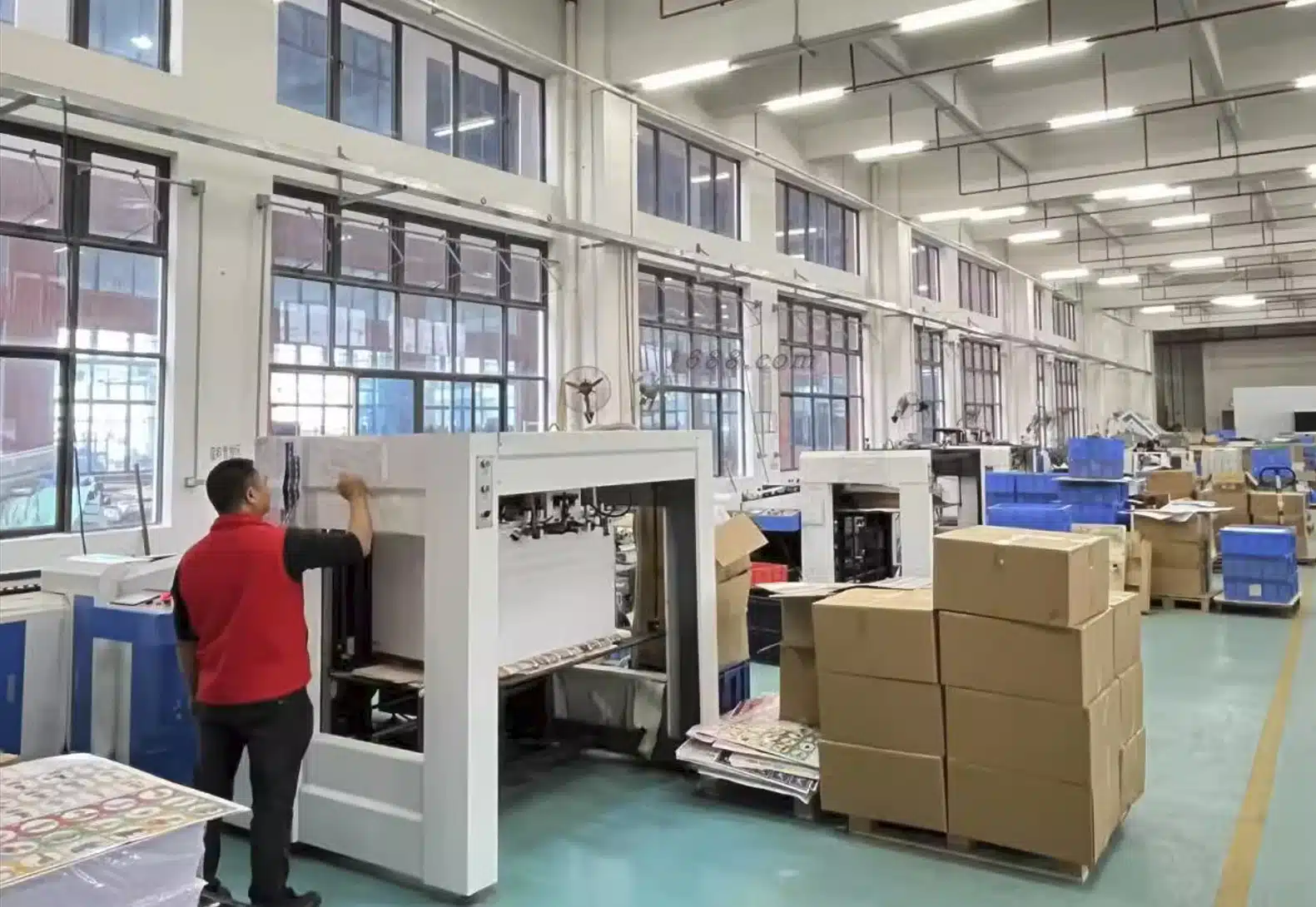

If some areas need more visual weight, gold foil, silver foil, or Spot UV can be added after printing. We normally treat those as controlled accents, not something to place freely everywhere. If they land too close to fold lines or hinge stress areas, cracking, lift, and surface wear become much more likely later.

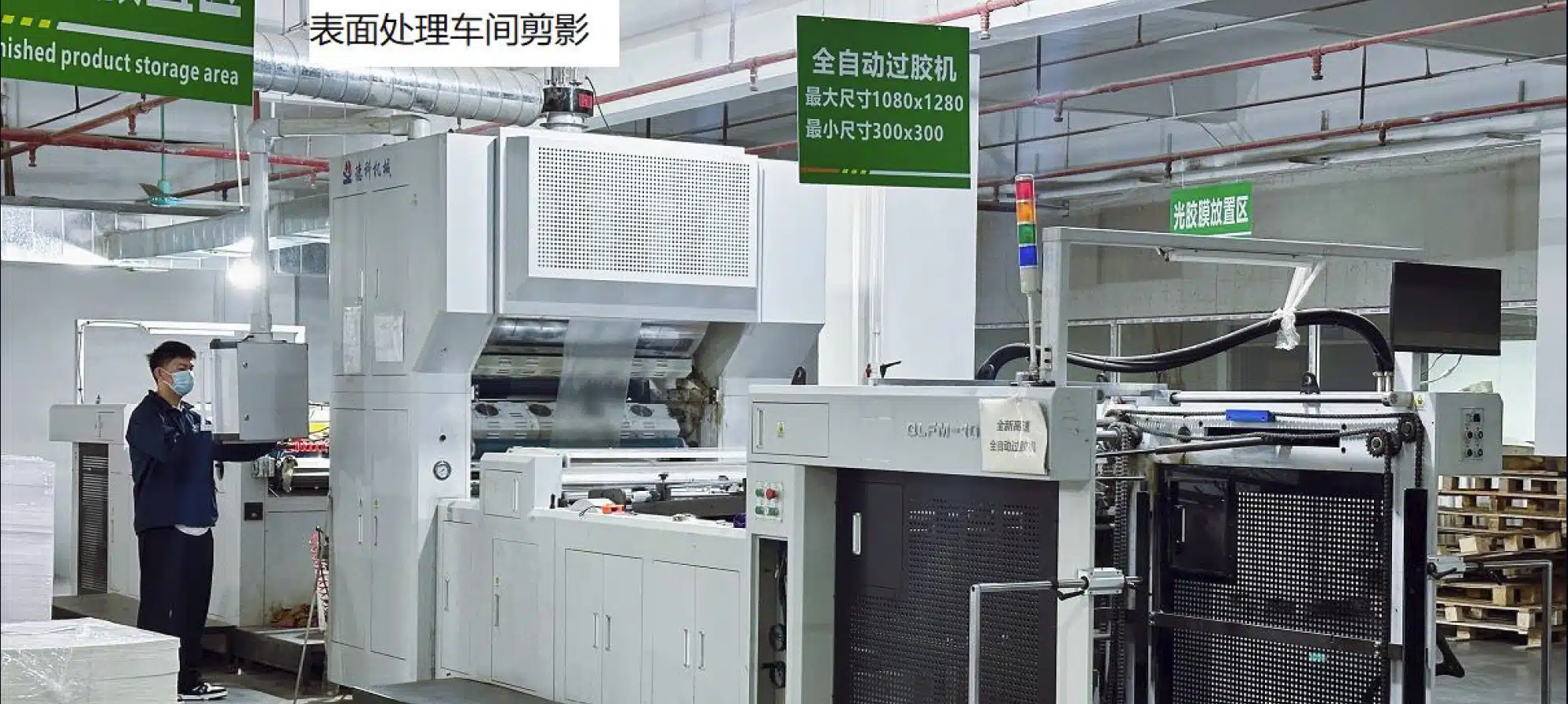

Custom Game Board Finishes
Board finish usually gets decided after we know how the board will be handled, stored, and used on the table. A mockup can make almost any finish look fine. Actual use is where the difference shows up. Some boards look good at first but glare badly under room lighting. Some mark easily around fold lines. Some wipe clean, others pick up wear faster than expected. So for us, finish choice is less about decoration and more about what kind of use the board needs to survive.

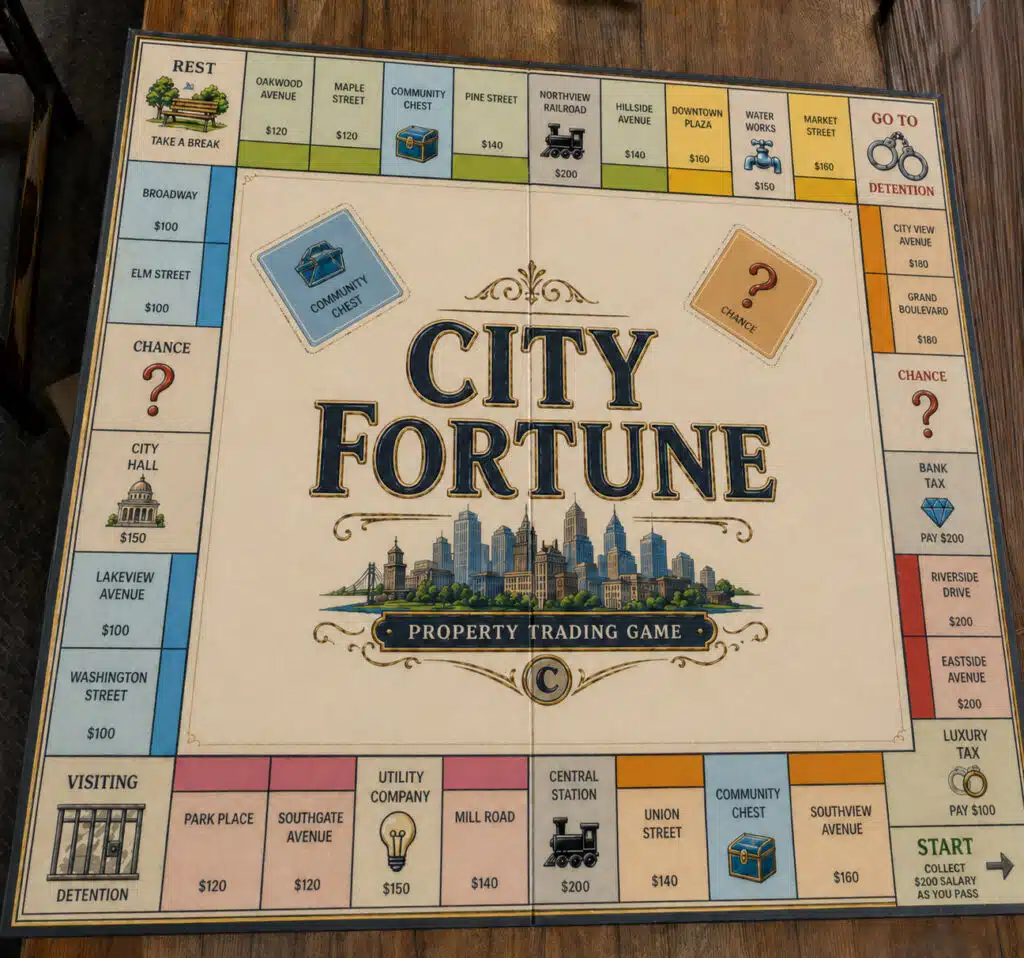

Matte Lamination
Matte lamination is the finish we reach for first on many board game projects. It puts a matte film over the print, which usually solves the two complaints that show up earliest on game boards: glare on the table and surface wear from regular use. If a board has map details, small text, dark background areas, or a lot of icon reading, matte is usually the safer call. Gloss may look brighter in a render, but under ceiling light the reflection often becomes the first thing people notice.
It also hides everyday use a bit better. Fingerprints, light rubbing, and the small marks that build up around fold areas usually show less than they do on a gloss surface. It will not stop wear completely, but for most retail boards, matte lamination is the finish we come back to first because it is easier to live with in actual play.

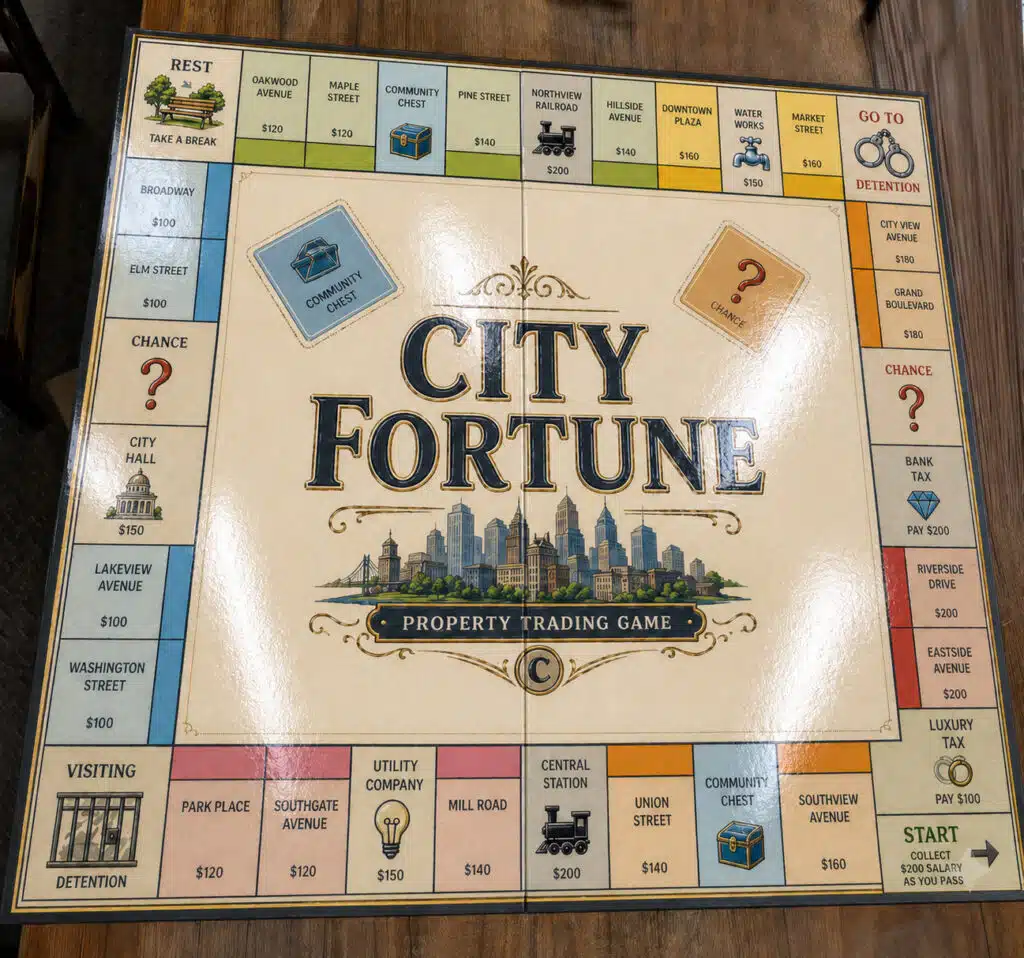

Glossy Lamination
Glossy lamination is usually chosen when the artwork needs more pop and the board still needs film protection. Colors look stronger, dark areas feel deeper, and the surface wipes more easily than a varnish-only board. On bright, graphic-heavy boards, that can work very well. On boards with maps, small text, or a lot of icons, the trade-off shows up quickly once the game hits the table.
The issue is glare. Under ceiling light, gloss is often the first thing people notice, and not always in a good way. The board may photograph well, but in actual play the reflection can start fighting the artwork. We still use gloss lamination when the visual direction really calls for it, especially on colorful family games or projects where image impact matters more than reading density. But if the board asks players to scan information constantly, gloss is usually not the first finish we recommend.

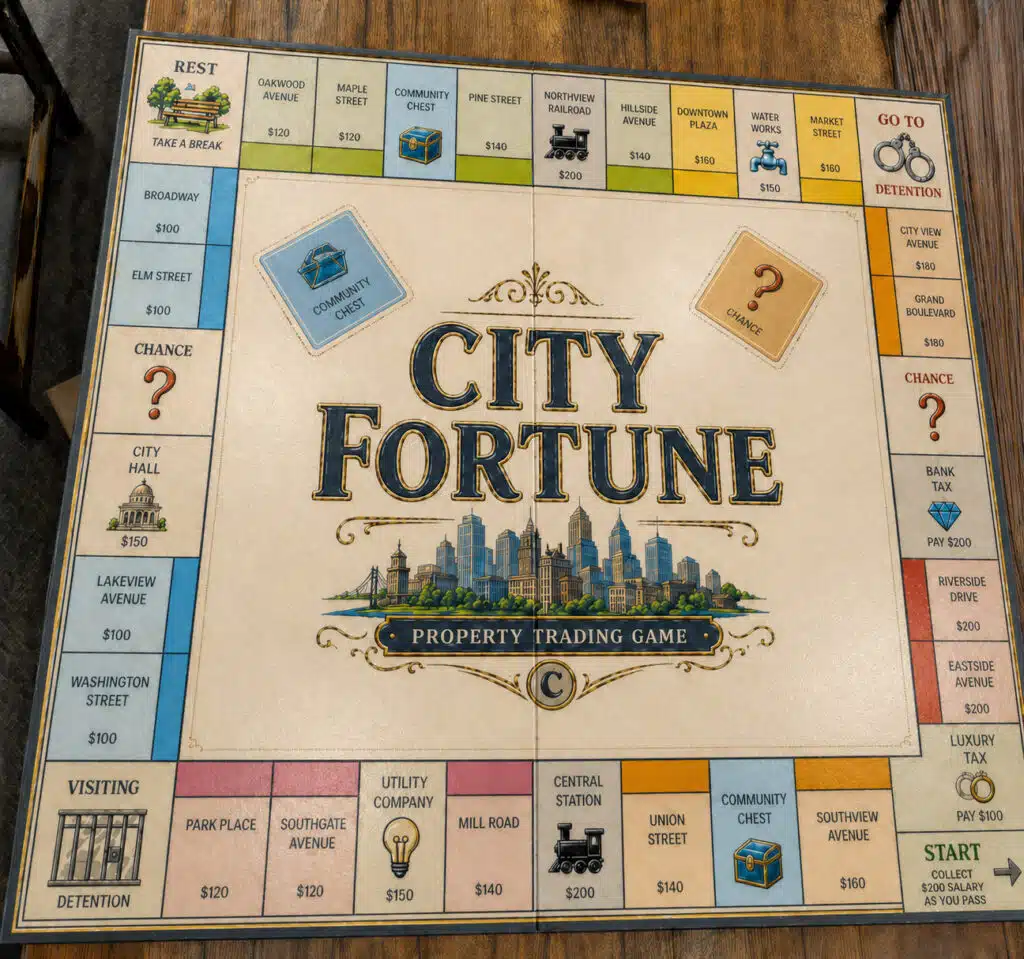

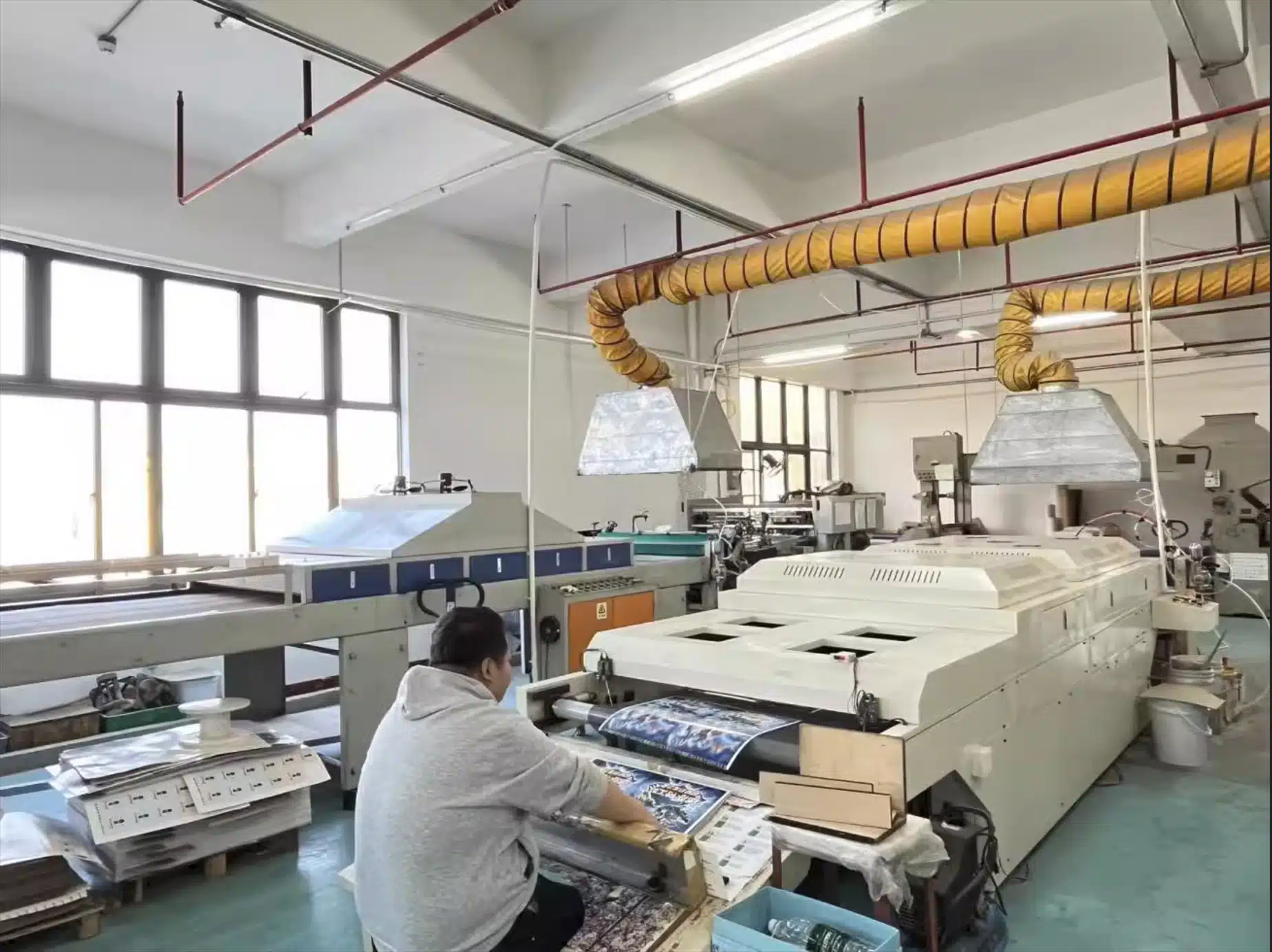

Matte Varnish
Matte varnish is usually used when the board does not need a full film layer and the project needs tighter cost control. It keeps a more open paper feel than lamination and cuts glare down reasonably well, so it can work on straightforward board game layouts where surface protection is not being pushed too hard.
The limitation shows up in use. It wears earlier than lamination, especially around fold lines, edges, and places where hands keep returning during play. Oil marks, light rubbing, and small surface scuffs also show up sooner than many people expect. We use matte varnish when the budget needs it or when the board does not justify film lamination, but for heavier retail use, it is usually not the first finish we go to.

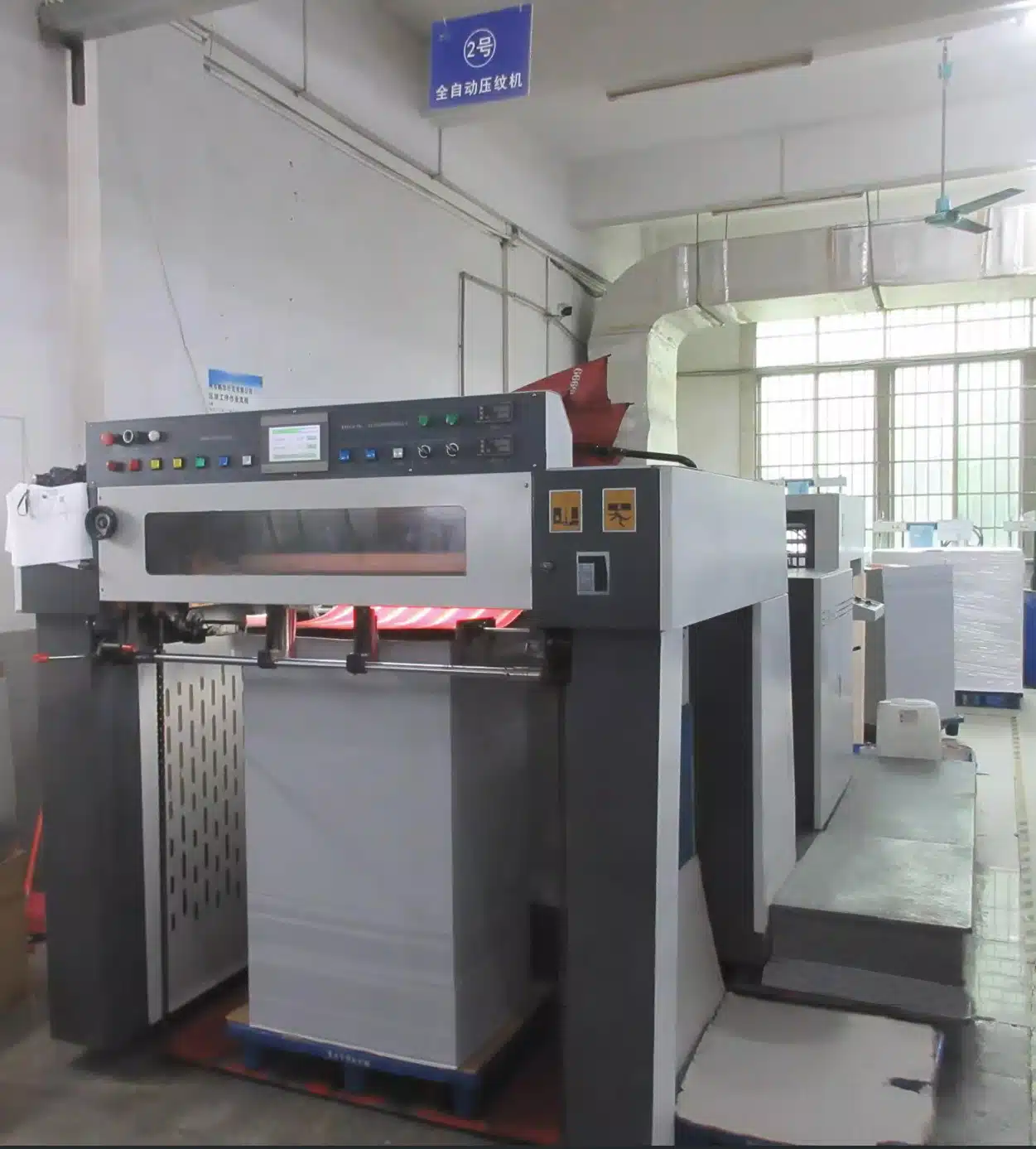

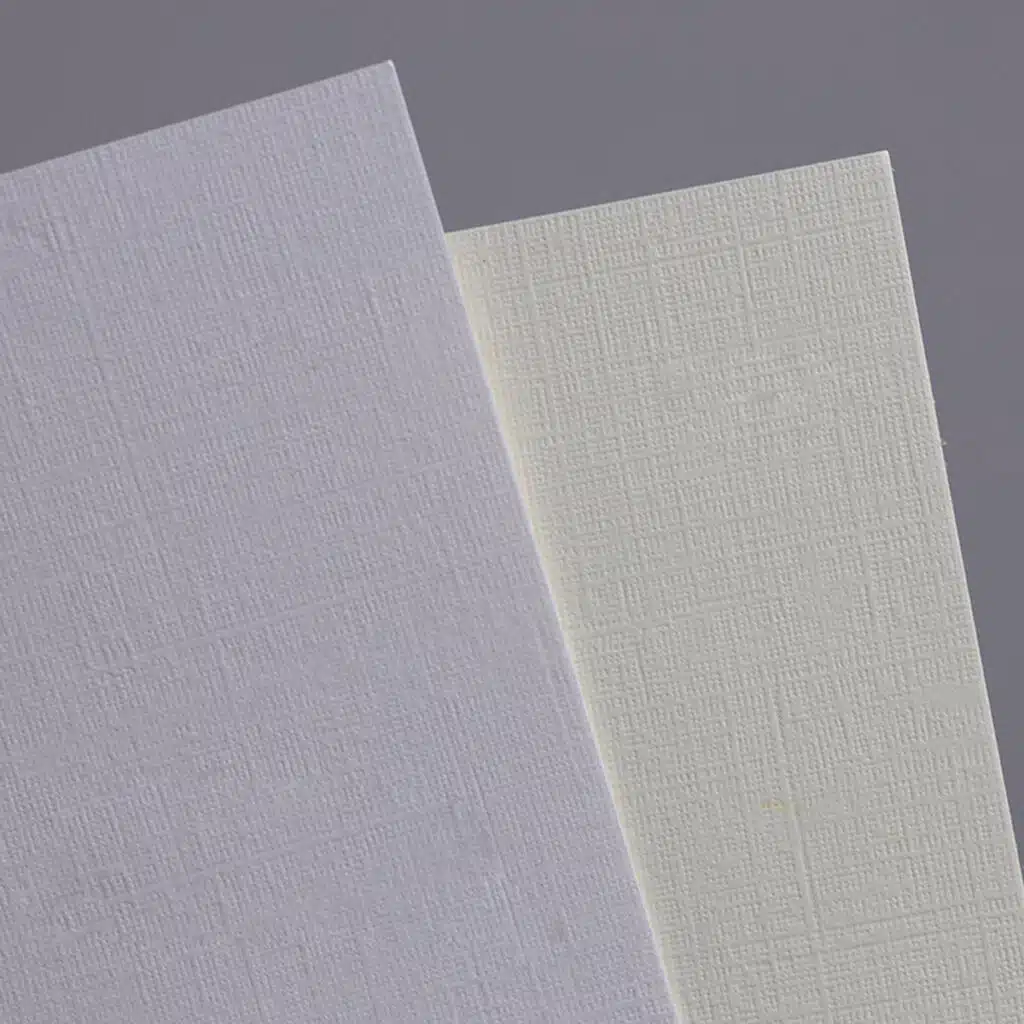

Linen Finish (Embossed Texture)
Linen finish is not a default finish for game board. We usually use it when a plain flat surface feels too plain for the project. On game boards, the texture mostly changes the surface character. It can soften reflection a little and make light rubbing less obvious, but it is not something we choose for performance the way we would on playing cards.
That is why we usually treat linen as a style decision with production consequences, not as a universal upgrade. On some artwork, it gives the board a more classic or more tactile surface character. On other artwork, especially when there are very fine lines or very clean flat color areas, the texture can start working against the print. We normally want to see the artwork direction before recommending it, because linen can look right on one board and unnecessary on the next.
Soft Touch Lamination (Specialty)
Soft touch is a specialty finish, not a standard recommendation. We use it when the board needs that very controlled, almost suede-like surface feel and the project cares about first-touch impression. It can look very clean on premium editions, presentation-driven projects, and crowdfunding products where surface feel is part of the pitch.
The drawback usually comes later. Soft touch marks more easily than regular matte film, oil rub shows sooner, and edge wear is harder to hide once the board has been opened and closed many times. It can still be the right choice, but only when the project knows what it is trading for that surface feel. For a board that will see heavy, repeated play, we are usually more cautious with it.
Why Choose FUNWAY
We have been making cards, puzzles, and board games since 1999. Today we run a 16,000-square-meter factory with over 200 workers. We are a direct OEM/ODM manufacturer, not a trading company. We have finished 5,000+ projects and shipped 2.3 million+ products worldwide. You get factory-direct pricing and a team that knows this work inside out.
We handle everything from design to final packing. You can order 1 piece for testing or 10,000 for a full launch — we keep the same quality at any quantity.
CE – EN 71
amfori BSCI
ESTS FSC COC
SGS FSC COC
ISO 9001:2015 -
ASTM F963-17
Why Bulk Buy From FUNWAY
Competitive Bulk Pricing

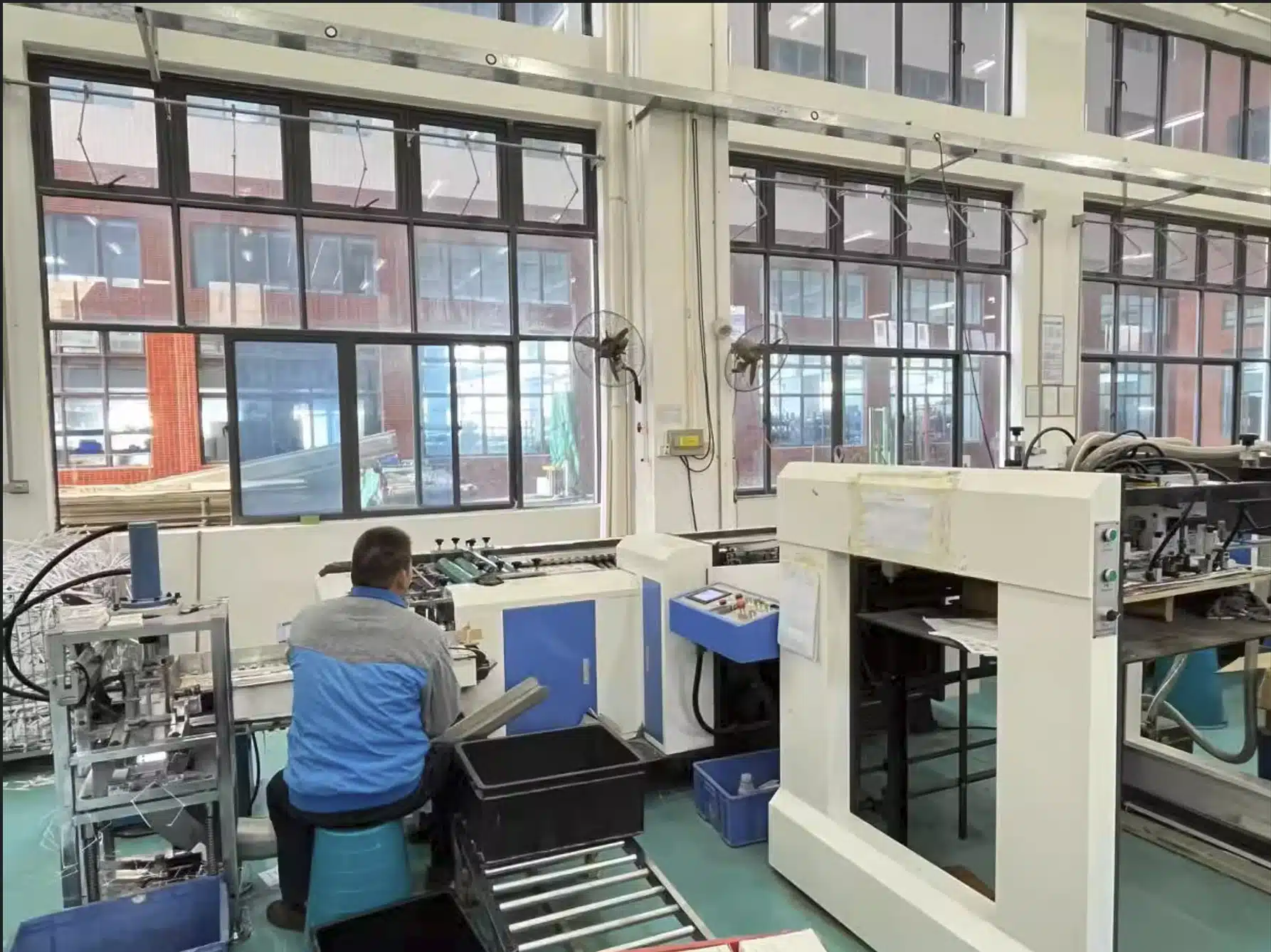

Factory-Direct Quality Control

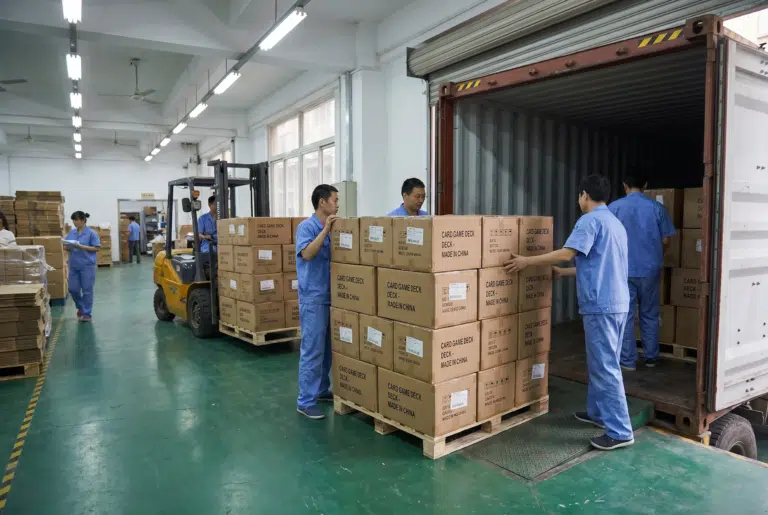

On-Time Delivery Promise

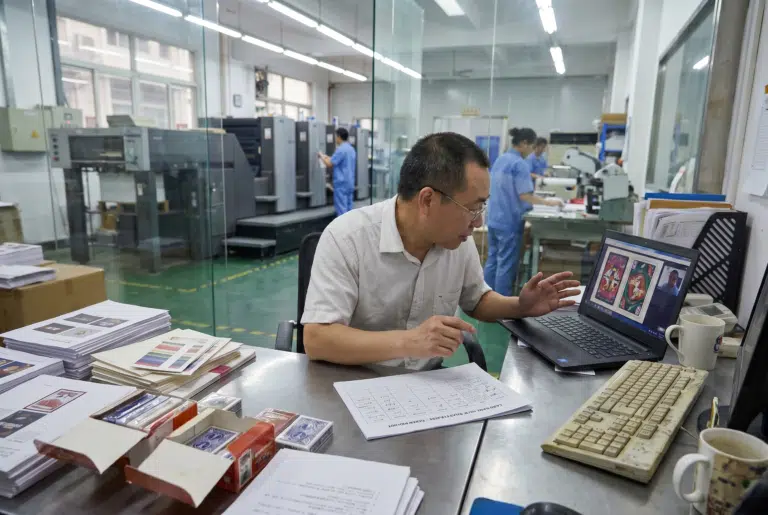

1-on-1 Project Support

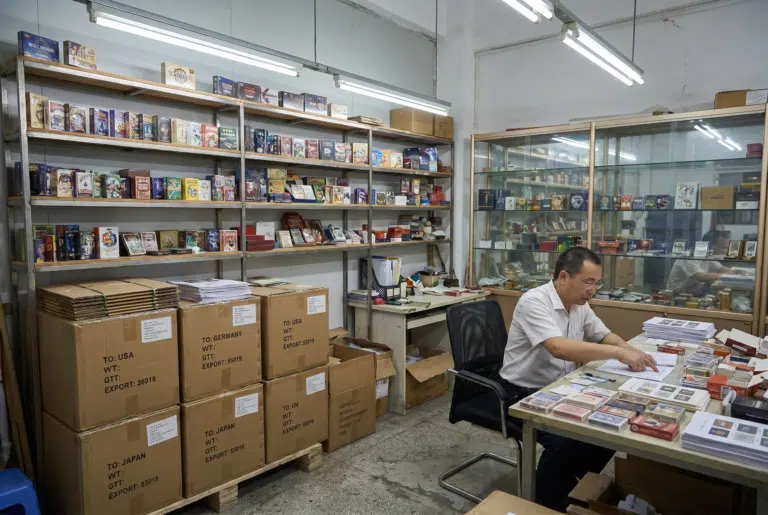

Trusted by Global Brands
Secure Payment & After-Sales
Complete Custom Board Game Components
A board game is a system of interconnected components. At FUNWAY, we manufacture every element — from the board and box down to the smallest token — as one integrated production, not separate parts. Here are all the customizable components that go into a complete board game. And of course, you can choose to customize the whole or just a part of it.
| Folded or rigid boards up to 600×900mm with hinge alignment and surface finishing | |
| Telescope, rigid, and magnetic boxes engineered for fit and stacking strength | |
| Neoprene play surfaces and foldable player screens | |
| Cardstock selection, clean cutting, and coatings for stable shuffling | |
| PVC and resin figures with mold review and scale consistency control | |
| Precision dice in multiple materials, sizes, and custom face designs | |

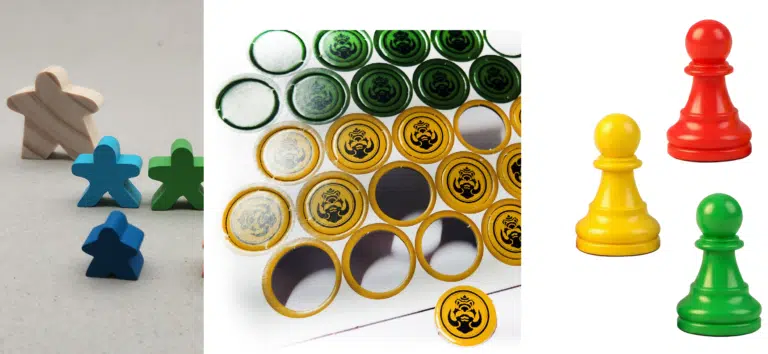

| Player markers in wood or plastic with precise silhouettes and color control | |
| Map and terrain modules in cardboard, plastic, or acrylic | |
| Punchboard chips, wooden discs, and counters for scores and resources | |
| Metal coins, wooden resources, plastic pawns, standees, and specialty parts | |
| Printed paper essentials for rules, currency, and scorekeeping |
Every component above is manufactured through our integrated production system — from component mapping and engineering review through sampling and mass production. Learn more about our complete custom board game printing services.
Transparent Pricing
Custom Game Board Pricing Examples
See real-world pricing examples for popular board game styles. Every project is unique. these estimates help you plan your budget before requesting a detailed quote.

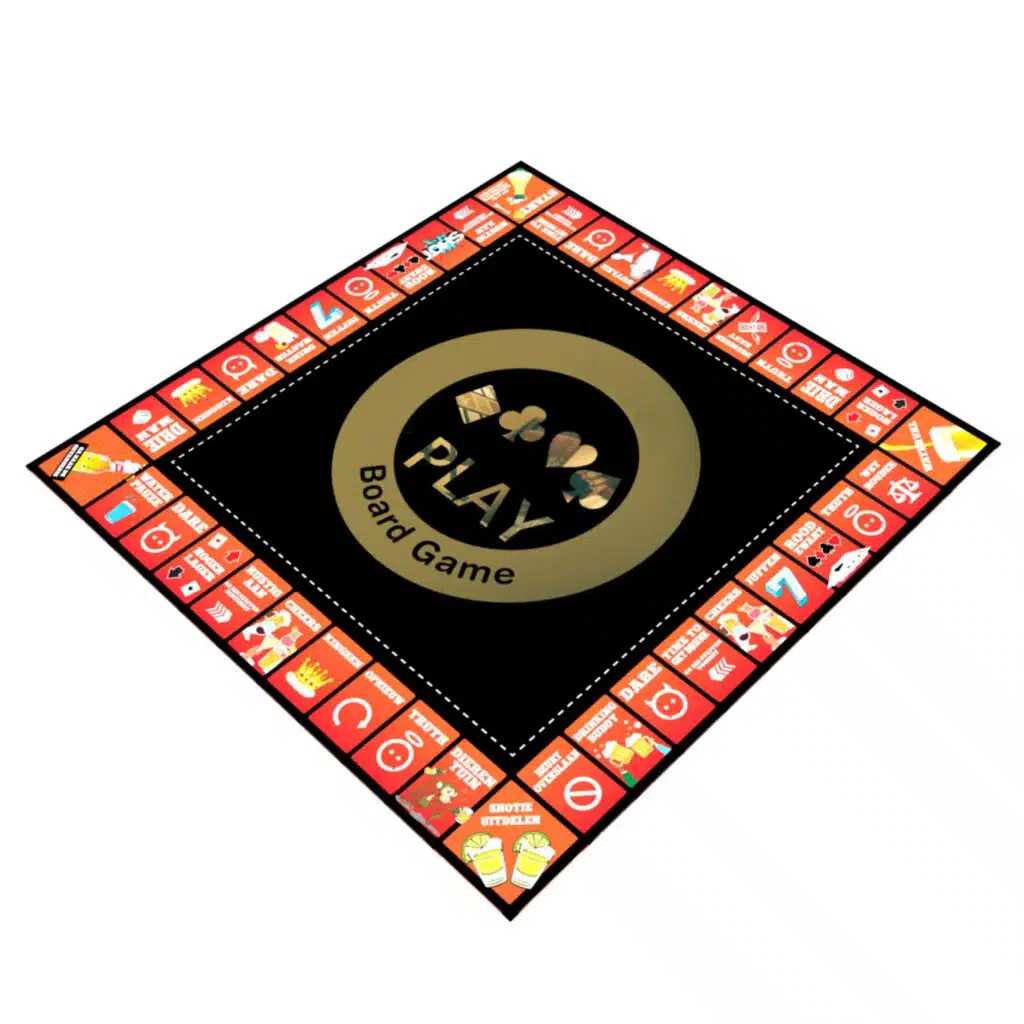

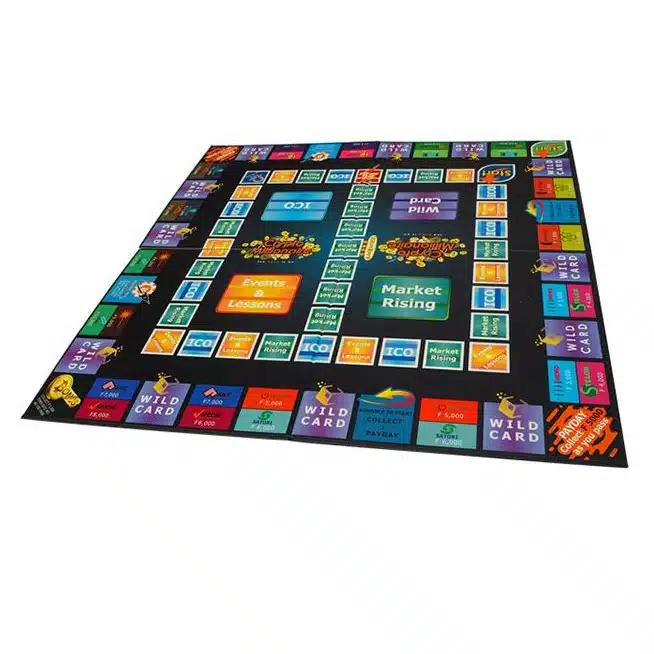

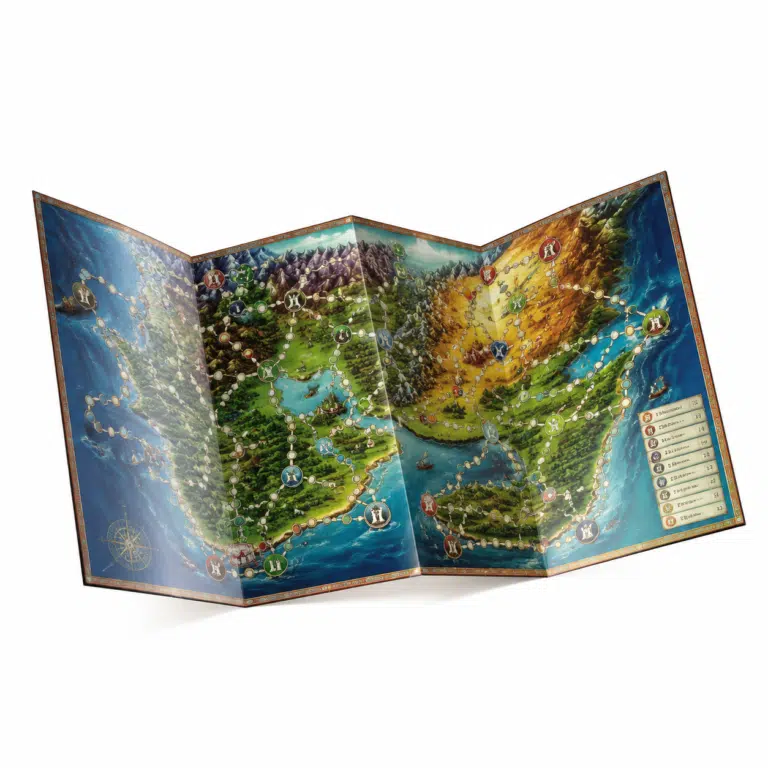

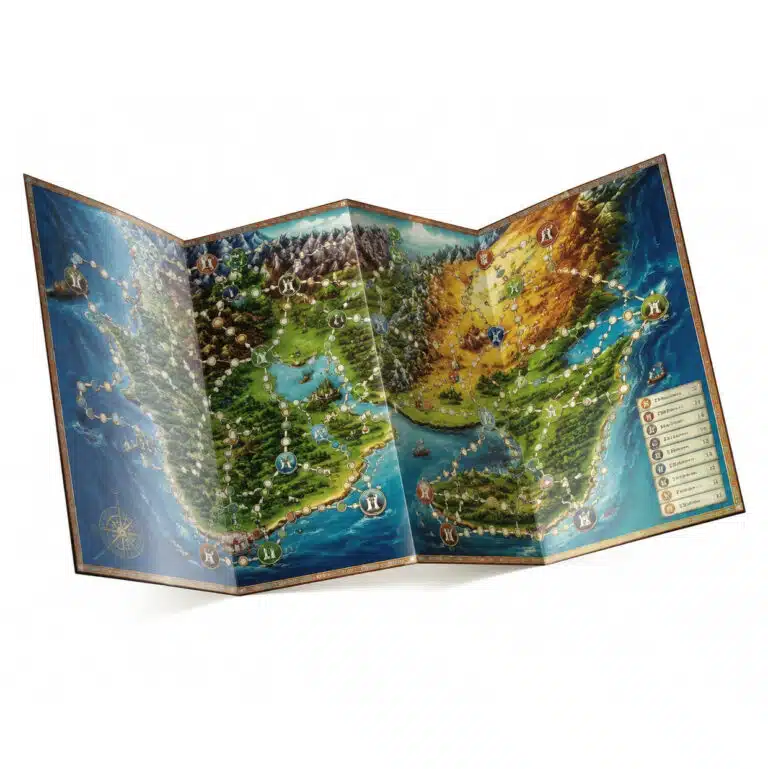

Standard Foldable Game Board
Portable fold-flat board for easy storage and travel
Component | Specification | Qty |
|---|---|---|
Game Board | Foldable 50×50cm | 1 pc |
Material | 2mm greyboard | / |
Printing | Full-color Print | / |
Finish | Gloss Lamination | / |
Structure | 4-panel Fold | / |
Estimated Quote (1,000 units)
$1.5 – 3.0 / set
Lead time: 15-60 days

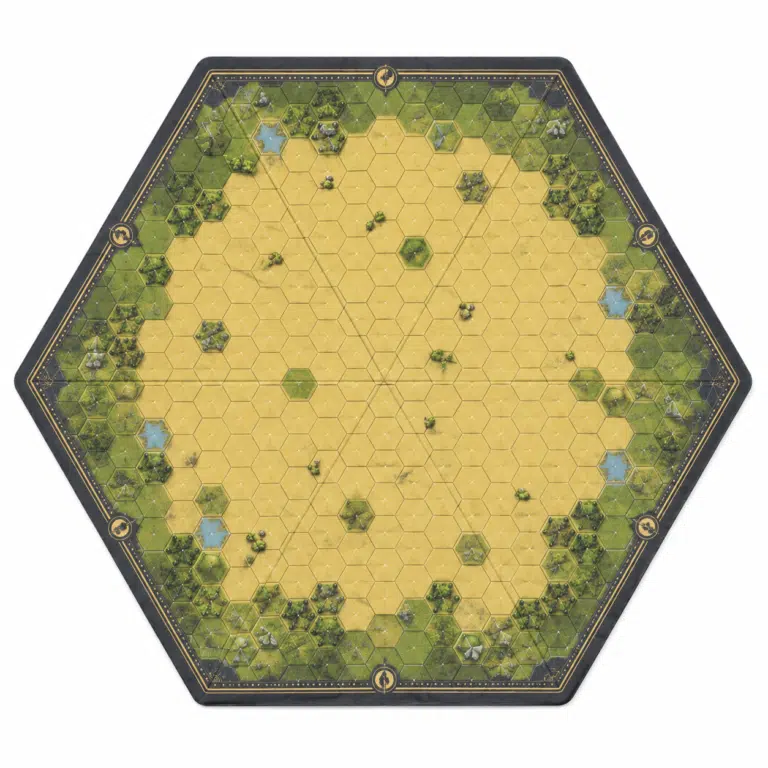

Hexagonal Game Board
Distinct hex-grid board designed for strategic gameplay
Component | Specification | Qty |
|---|---|---|
Game Board | Hexagonal 60×60cm | 1 pc |
Material | 3mm greyboard | / |
Printing | Double-sided Print | / |
Finish | Matte Finish | / |
Structure | 6-panel Fold | / |
Estimated Quote (1,000 units)
$3.5 – 7.5 / set
Lead time: 15-60 days

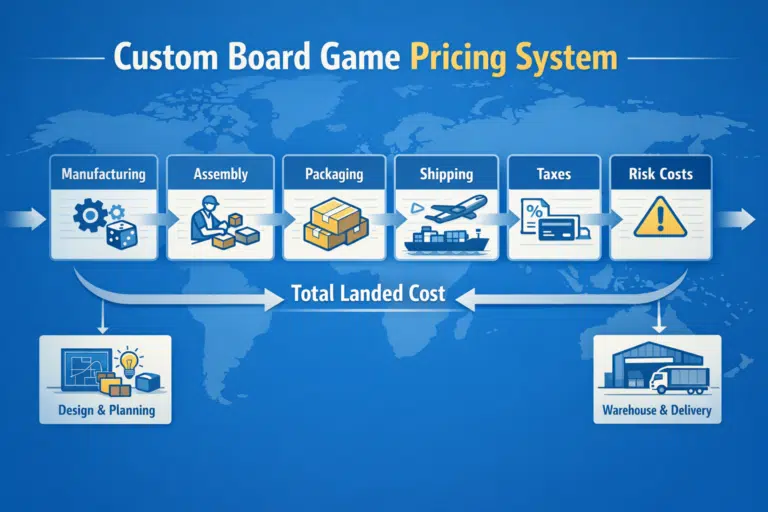

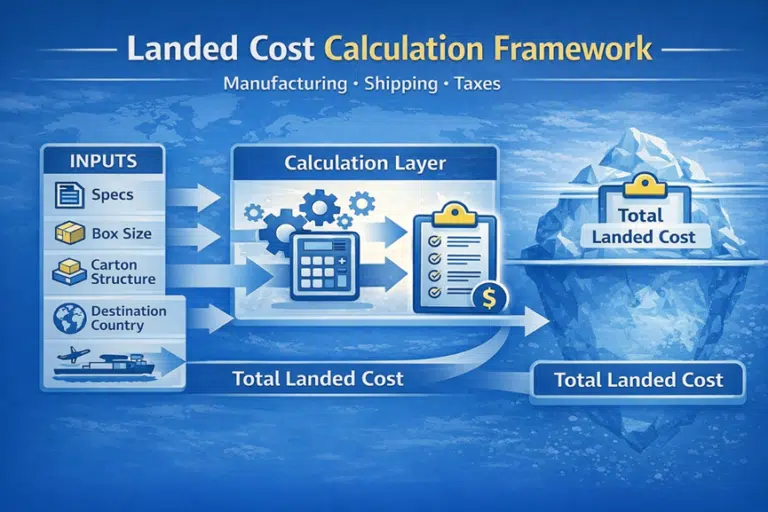

Understand Your Costs
Deep-dive guides to help you budget, plan, and avoid surprises.
Individual Component Pricing
Need a quote for just one component? Check individual pricing for each sub-service.

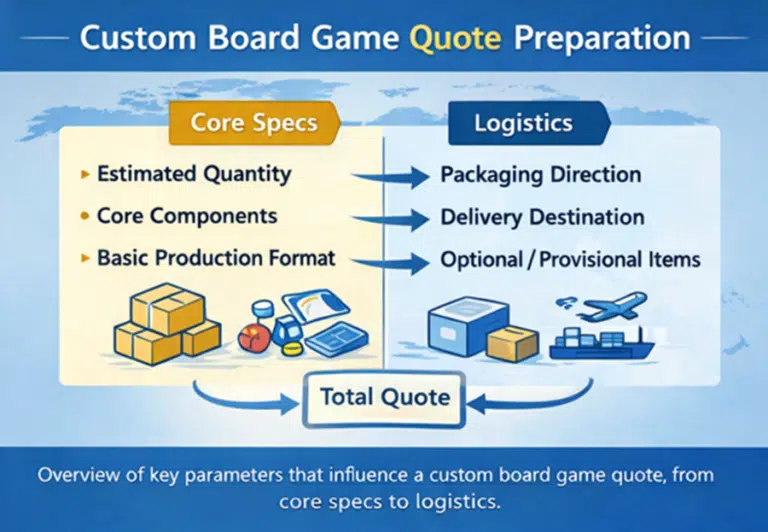

Ready to Get Your Exact Quote?
These are estimates. Your game is unique. Send us your specs and we’ll return a detailed, itemized quote within 24 hours.
OEM / ODM Manufacturing Process

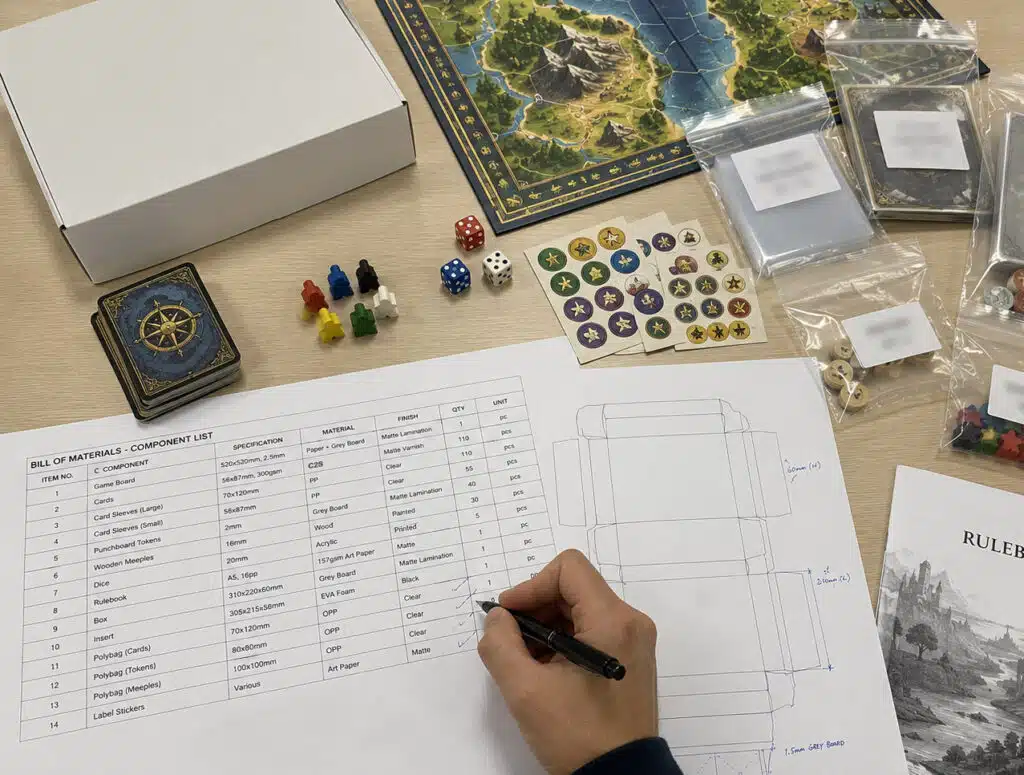

Step 1: Project Review & Component Mapping
We do not quote from a loose parts list. We quote from a complete product plan.
Before pricing, we map every component: board, cards, tokens, rulebook, insert, box, and accessories. We check how they fit as one packed set. This keeps the quote accurate. It also prevents surprises later in tooling, packing, and freight. We check:
Getting this order right keeps your project on budget and on schedule.

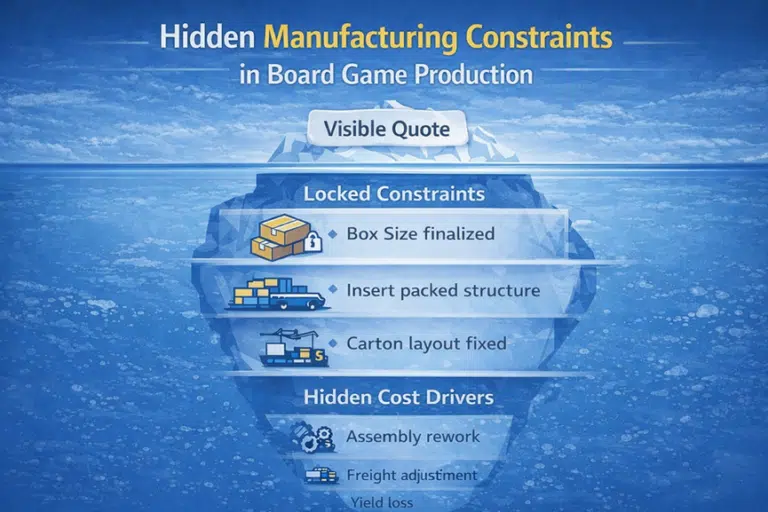

Step 2: DFM Check & Manufacturing Review
A bad sample usually starts from a design that was never checked for real production.
Before we build samples, we review your files for real-world manufacturing. We check dielines, bleed, safe zones, fold lines, card thickness, box depth, insert fit, and surface finish. We fix these issues before sampling:
If the packed set cannot close cleanly, changing the finish will not fix it. We fix the structure first.

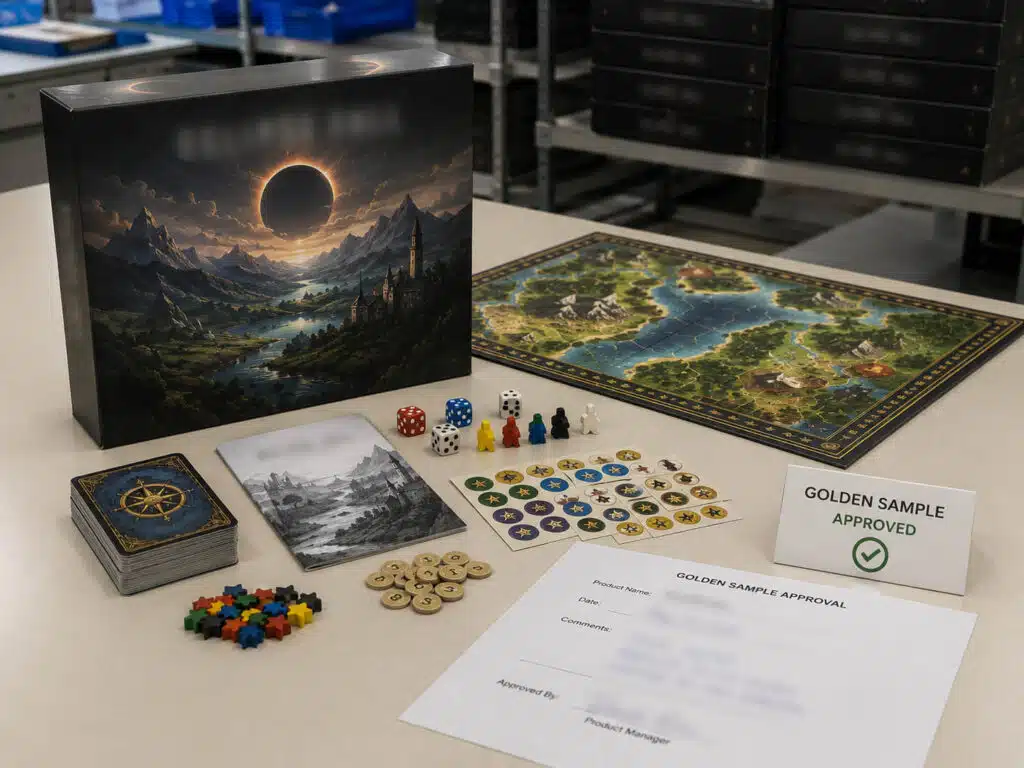

Step 3: Sample Production & Approval
The sample is not a photo shoot. It is the production standard.
We build the first sample to test material feel, fold strength, color accuracy, box fit, insert tightness, and total weight. You review it. You approve it. This approved sample becomes the Golden Sample. All mass production is checked against it.
After this point, changes to board size, card stock, insert, or box depth will restart cost and lead time. We keep the sample stable so your bulk order stays on track.

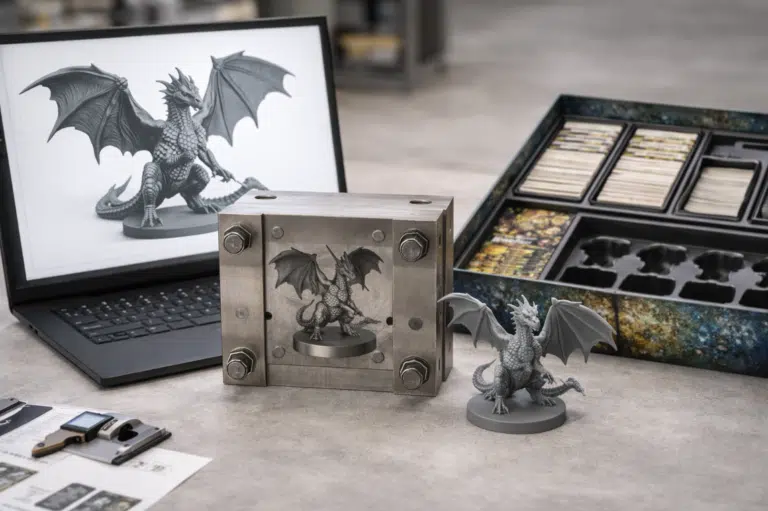

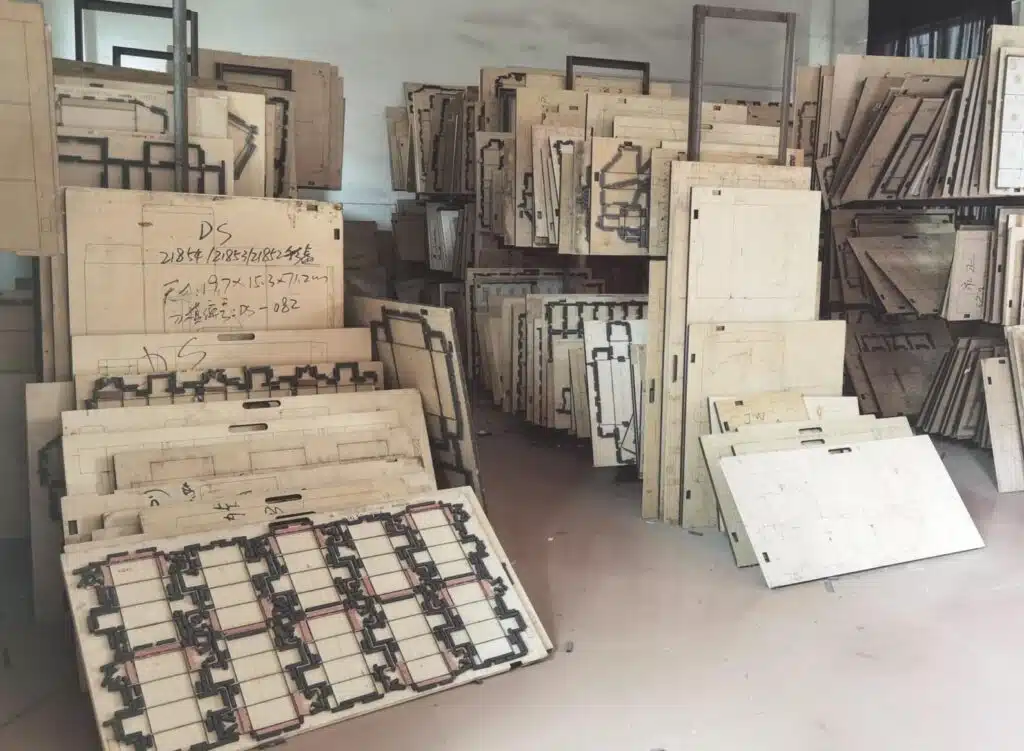

Step 4: Tooling & Mold Setup
We open tooling only after the Golden Sample is locked.

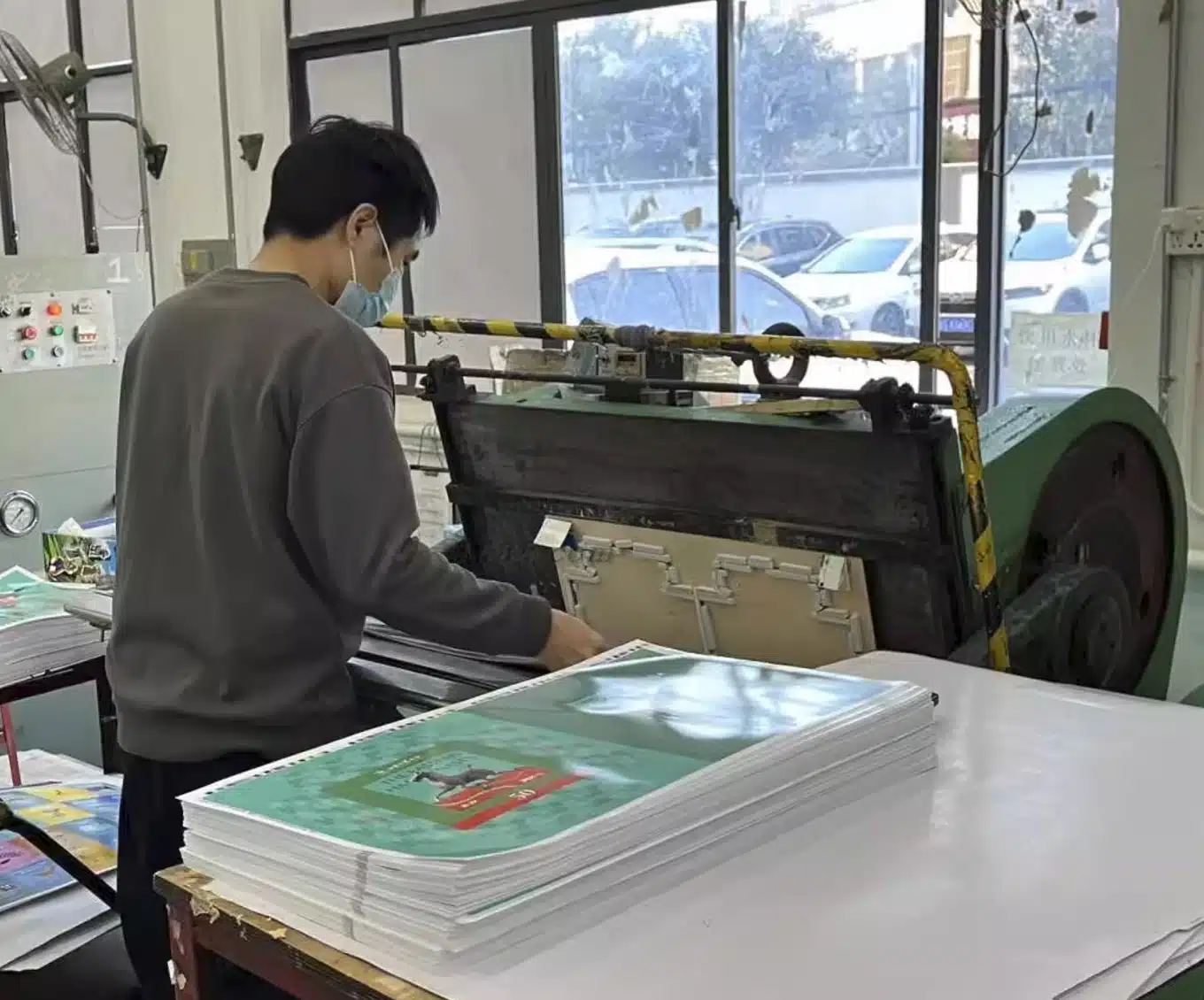

Tooling covers die-cut tools for cards, boards, punchboards, inserts, and boxes. For special plastic parts, we may need molds or fixtures.
We never rush tooling while the design is still moving. Once the die is made, changes cost time and money. We wait for your final approval before cutting steel.
This protects your tooling investment and keeps the project on schedule.

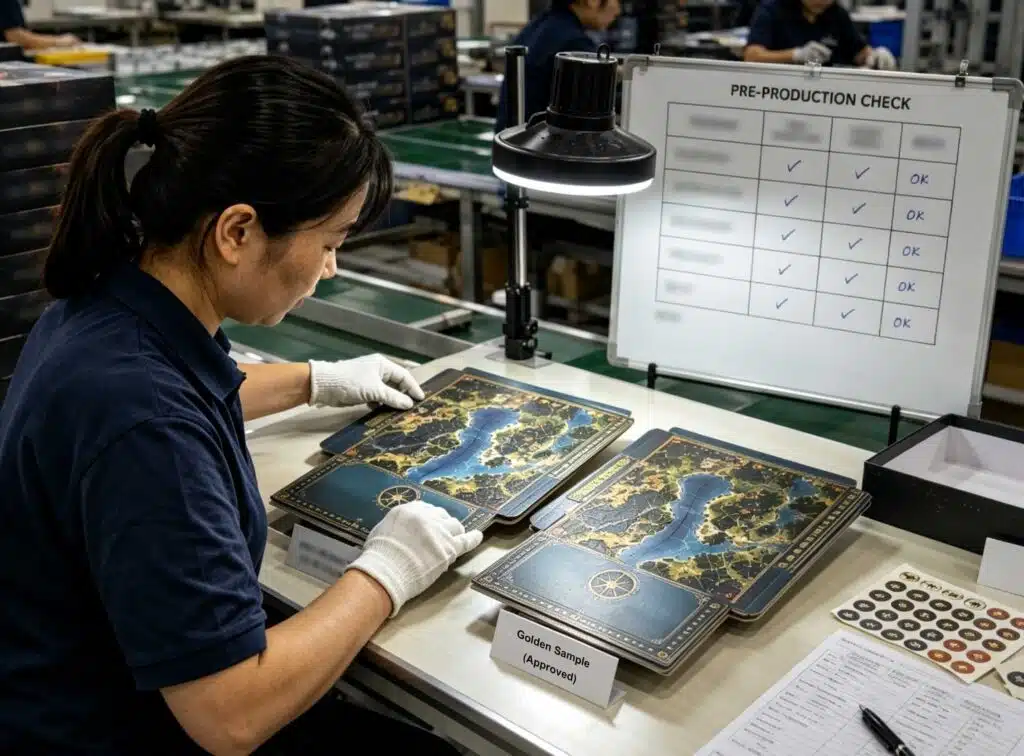

Step 5: Pre-Production Validation
Small errors are cheapest to catch before the full run.
We run a small pre-production batch. We check color drift, cutting position, fold accuracy, board thickness, surface finish, and component fit.
If anything does not match the Golden Sample, we stop and fix it before using more material. This step saves both time and cost.
This is why we never skip pre-production validation.

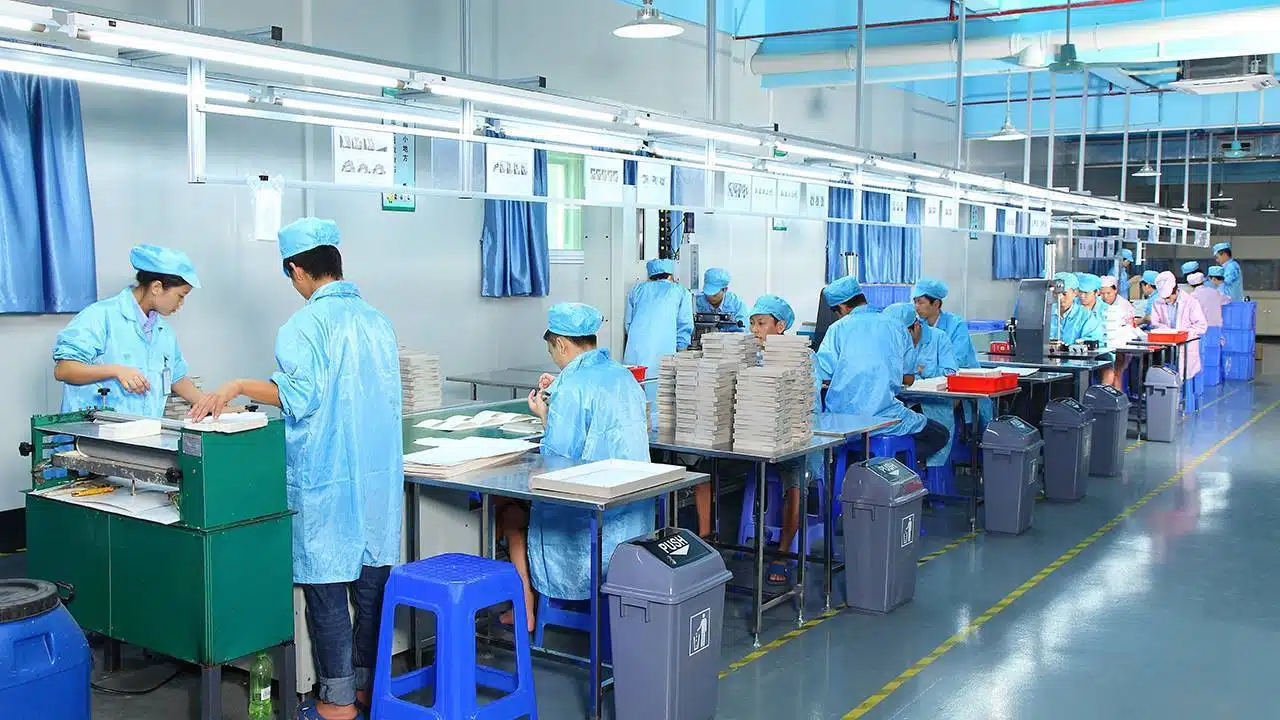

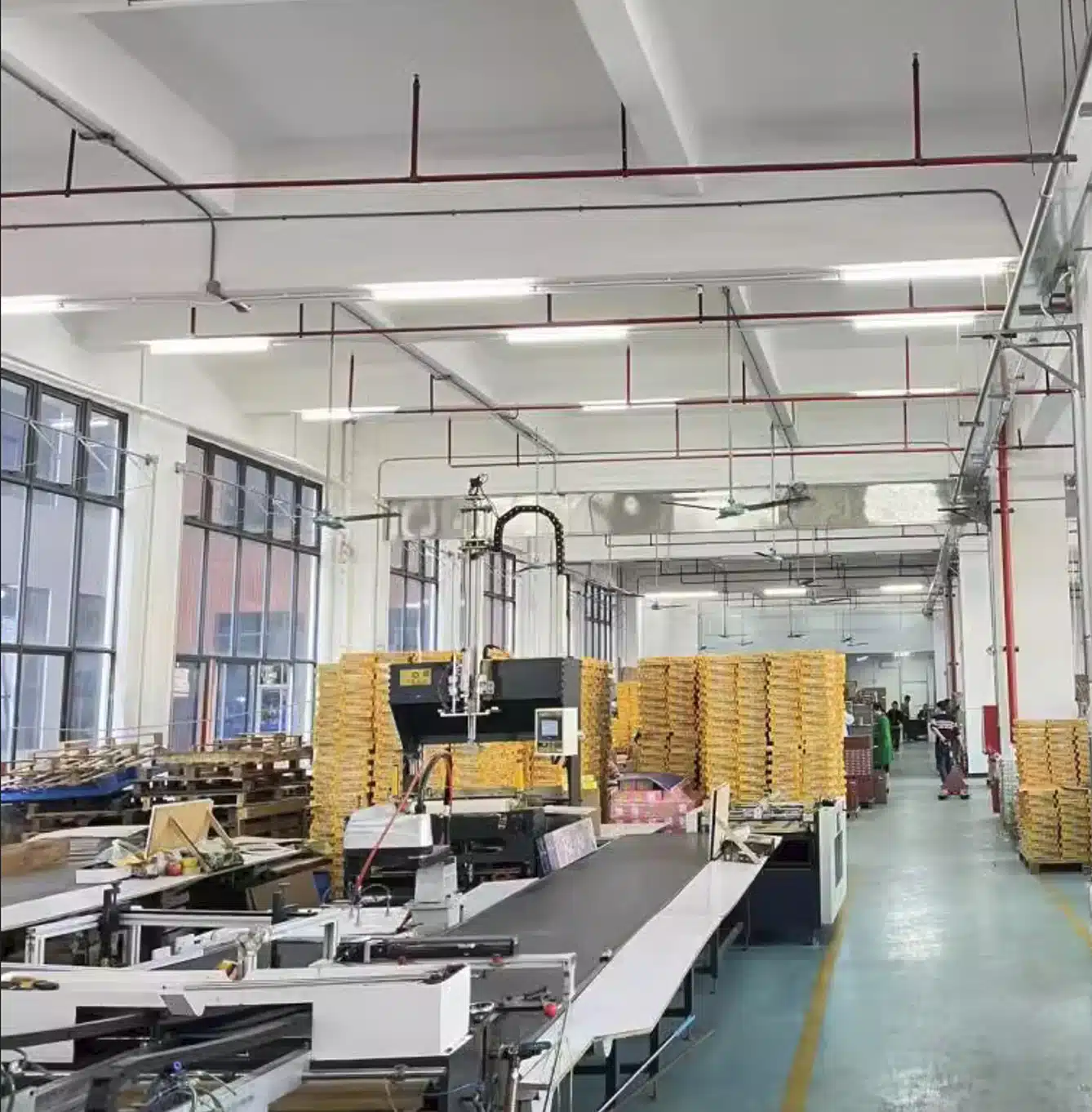

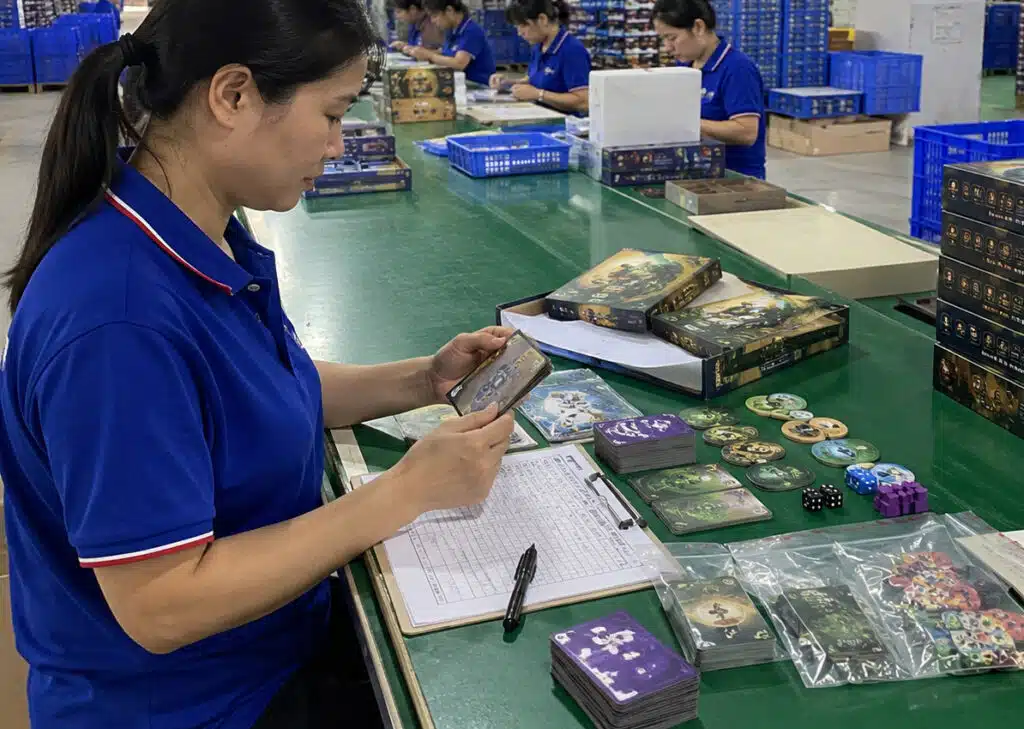

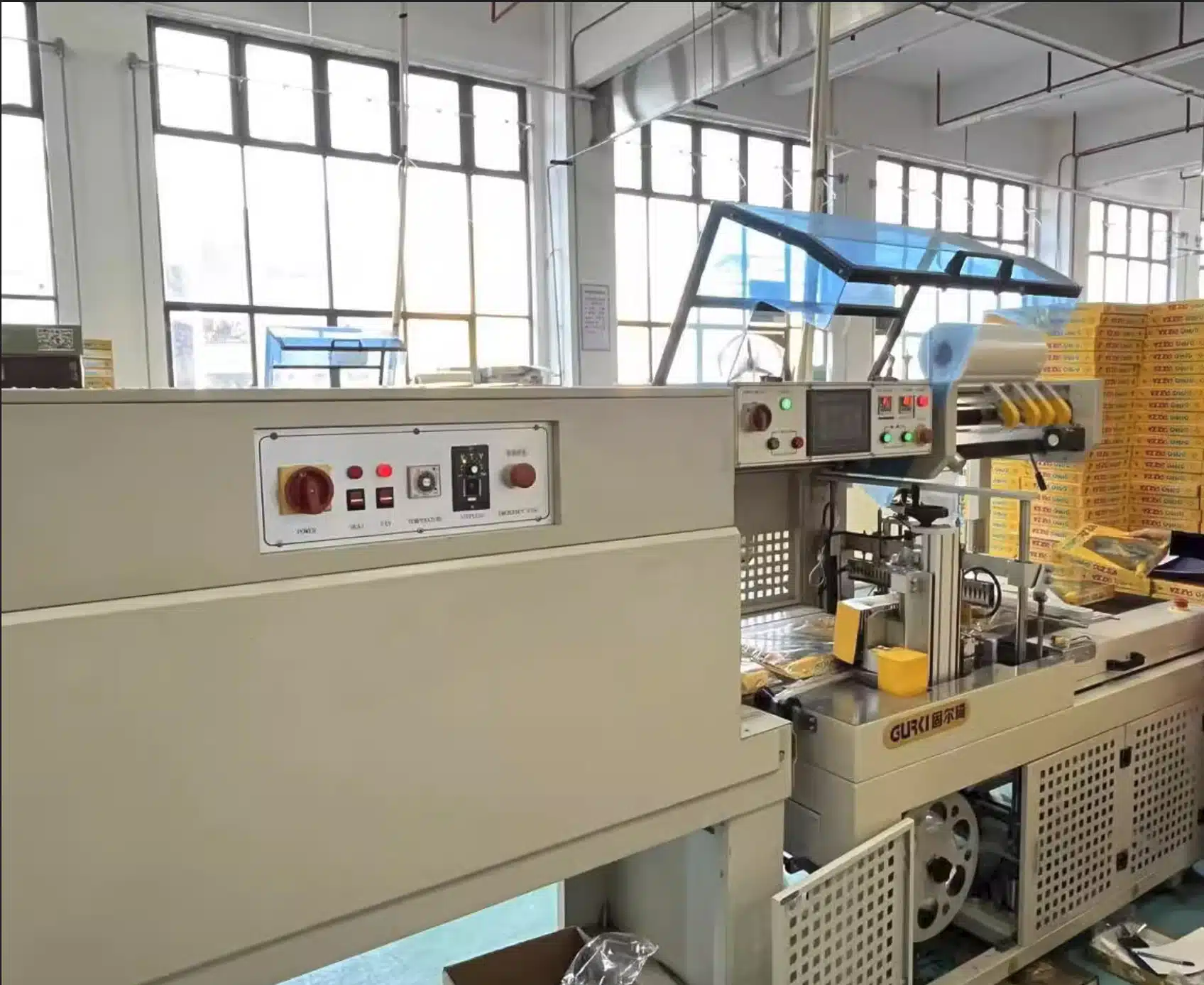

Step 6: Mass Production & Assembly
A game is not done when the parts are printed. It is done when the box closes properly.
Cards, boards, Punchboards, rulebooks, boxes, inserts, wooden pieces, dice, and accessories have to work as one packed set. During assembly, we check whether the approved packing layout still makes sense at production speed.
This is critical for B2B orders. Your distributor receives finished goods, not loose parts. Every set must be packed clean, stack flat, and ship safely.
We control assembly so your goods arrive ready for shelf or warehouse.

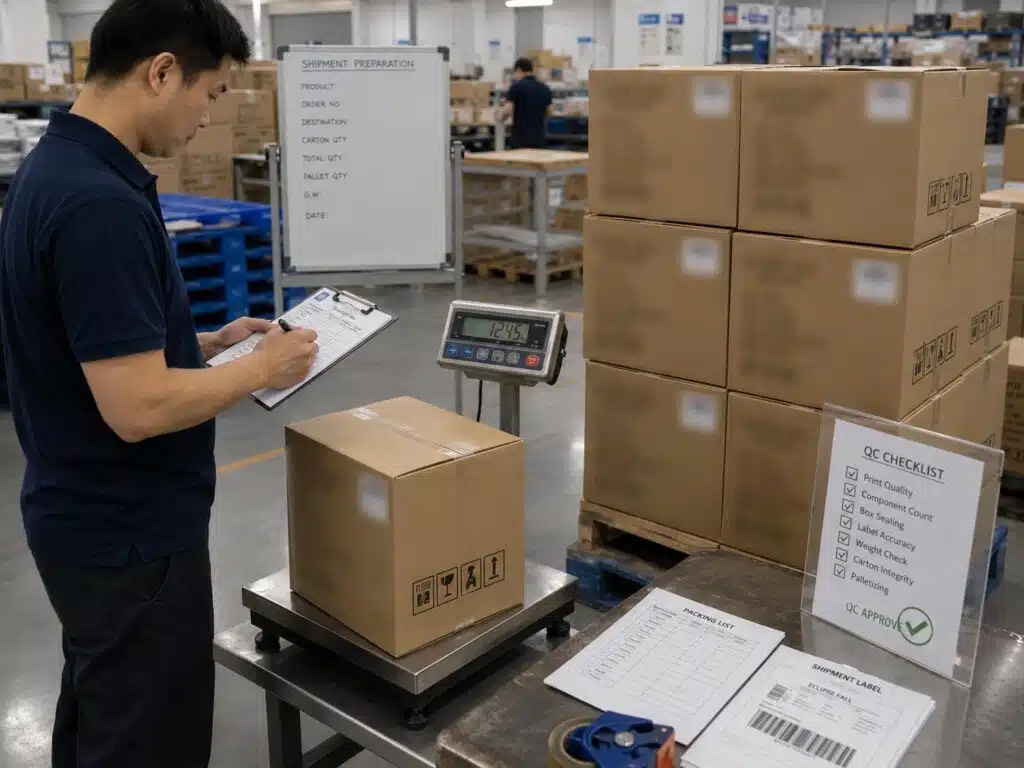

Step 7: Final QC & Global Shipping
A perfect product can still fail if the carton is wrong.
Before shipping, we check carton count, sets per carton, gross weight, carton size, shipping marks, and barcode labels. We match everything to your purchase order.
For B2B and retail orders, we also check pallet markings and stack height.
Small direct shipments get standard export packing. We ship by DHL, FedEx, or sea freight with full tracking. Every order leaves our factory with correct paperwork.
Why This Process Matters
Most problems do not show up early. They show up after one wrong decision forces the next.
This process is not meant to slow you down. For simple projects, we keep it fast. For complex projects with many parts, retail rules, or tight deadlines, these checks protect you from costly rework.
Engineering & Stability
Structural Engineering & Long-Term Board Stability
A board may look fine on the sample and still move later. The trouble usually shows up after folding, packing, shipping, and storage. That is when bowing, weak hinges, lifted edges, or an uneven lay start to show. So we build for board game stability first, not print appearance first.

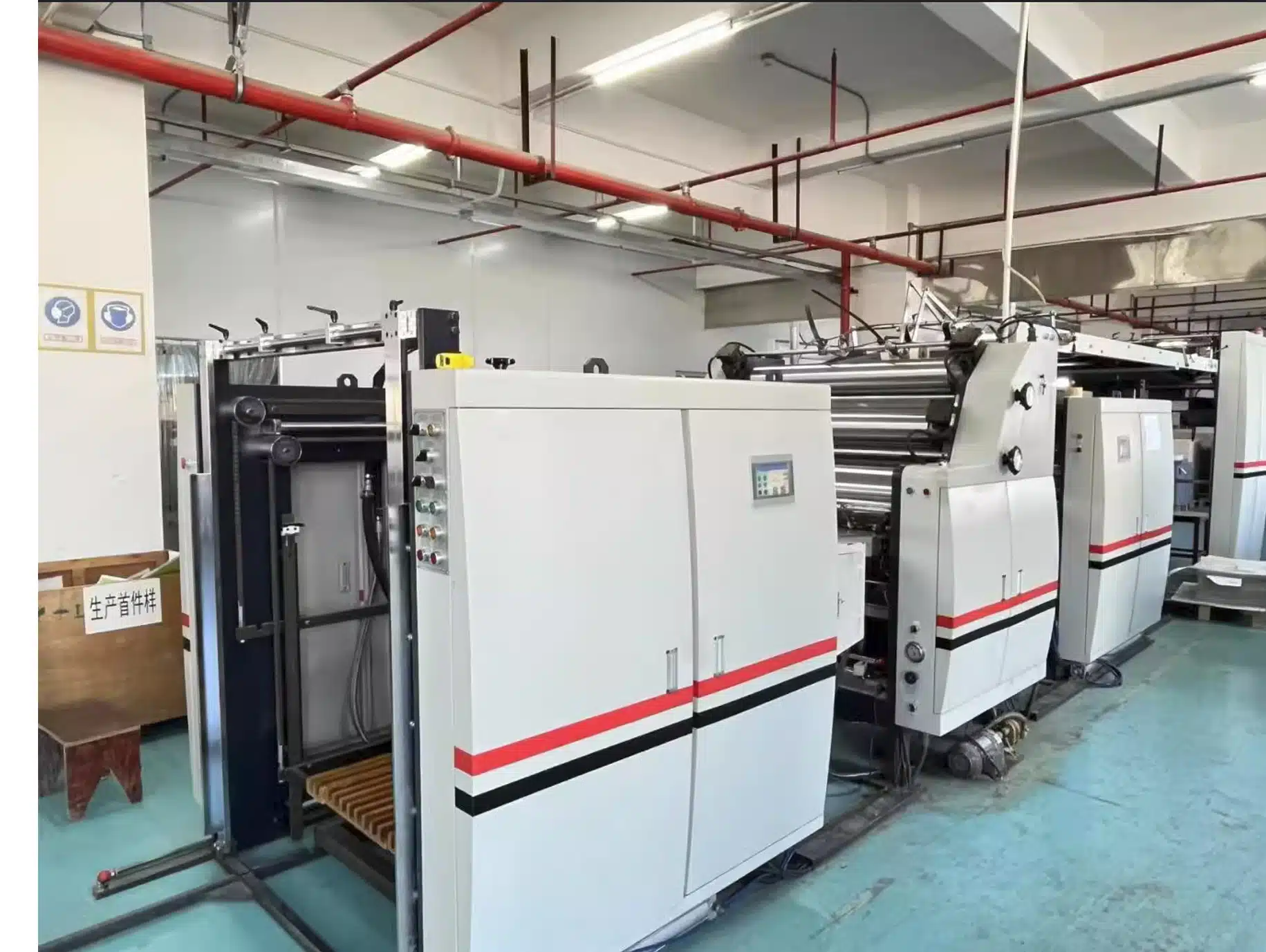

Core Material Stability & Anti-Warping Control: We use high-density greyboard because the core decides how stable the game board stays later.
Moisture Conditioning: Greyboard is conditioned before mounting. If moisture is off, the board is much harder to keep flat after shipping and storage.
Symmetrical Lamination Engineering: Both sides need to pull evenly. If one side pulls harder, stress stays inside the board and later shows as bowing, curling, or fold tension.
Post-Production Seasoning: After mounting and folding, boards are left to settle under controlled pressure before packing. This helps reduce later lift, bowing, and poor fold closure.
Precision Wrapping & Turned-Edge Craftsmanship
Board game edges usually tell you very quickly how well the board was built. If the wrap is loose, corners start taking damage early. If the paper is pulled too hard, the edge may look clean at first and still fail later. That is why edge wrapping is treated as a structural step, not just a finishing step.
Tight Corner Tucking: The wrap paper is turned tightly around the greyboard so the corners stay compact and clean. Loose corners are usually where edge lift and wear begin first.
Adhesive Chemistry Selection: The adhesive has to hold the wrap securely without turning brittle. If it loses flexibility, the hinge area and wrapped edges start breaking down much faster after repeated folding.
Texture Compatibility Calibration: Wrap papers do not all take pressure the same way. Smooth paper, textured stock, and linen wraps each need their own setting. If not, the surface is where the problem shows first—flattened texture, crushed fibers, or a wrap that no longer looks clean once it is mounted.

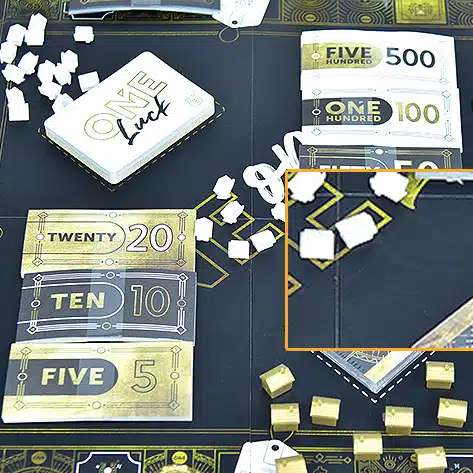

Folding Alignment & Hinge Engineering
On multi-fold game boards, hinge quality shows up as soon as the board is opened. If the fold placement is off, artwork breaks across panels, the center section stops reading cleanly, and the board may never sit properly on the table. This part is easy to miss in flat files, but very obvious on the finished board game.
Fold Alignment Control: Fold placement has to stay consistent across the full board. On maps, grids, roads, or any layout that runs through the center, even a small shift starts showing quickly once the board is opened.
Scored Hinges & Fold Clearance: Game boards are usually built with scored fold lines and controlled hinge gaps so the board can open and close without pulling the wrap too hard. That gap has to match the board thickness and fold style. If it is too tight, the hinge starts fighting the fold. If it is too loose, the board feels weak and the panels stop sitting cleanly.
Stress Relief at Fold Lines: The fold needs enough room to move. If that space is too tight, the trouble usually shows up around the hinge first—paper starts stressing, cracks begin to appear, the fold pushes back, or the board never really settles flat after opening.
Cost Drivers & MOQ Optimization
Core Thickness & Material Density
Core cost usually starts with thickness and density. Thinner boards use less material and are easier to process, so they work better for lighter games and tighter budgets. Once the core gets thicker and denser, cost rises with it—not only in material, but also in handling, weight, and board build.
Board Size & Folding Structure
Board size affects cost quickly, especially once the job moves beyond a standard bi-fold. Larger boards use more material, reduce layout efficiency, and often push the box size up as well. More folds also mean more scoring, more alignment work, and more chances for the fold area to become the weak point.
Surface Finishing Effects
Finish cost depends on how much protection and surface effect the board really needs. Varnish is usually the lowest-cost option. Lamination adds more protection, but also more cost. Linen, soft touch, foil, and Spot UV push the job further again because they add extra passes, tighter handling, and more process control.
Order Volume & Production Efficiency
MOQ matters because setup cost does not shrink with the run size. Small orders are still possible, but the cost per board stays higher because the setup work is not really any smaller. Once the quantity goes up, that setup burden is spread much more efficiently, and the unit price usually starts dropping in a more noticeable way.
FAQs about Custom Game Board
